Case Studies: Case Study 1

This example shows how we obtained the results in the paper for the first case study. To start, let us load in the packages we will need.

using StepwiseEQL
using CairoMakie
using EpithelialDynamics1D
using OrdinaryDiffEq

Simulating

The first step in our procedure is to obtain the results from the cell simulation. This is done as follows. We use the force law $F(\ell) = k(s - \ell)$.

force_law = (δ, p) -> p.k * (p.s - δ)
force_law_parameters = (k=50.0, s=0.2)
final_time = 5.0
damping_constant = 1.0
initial_condition = [LinRange(0, 5, 30); LinRange(25, 30, 30)] |> unique!
prob = CellProblem(;
    force_law,
    force_law_parameters,
    final_time,
    damping_constant,
    initial_condition)
sol = solve(prob, Tsit5(), saveat=LinRange(0, final_time, 50))

retcode: Success
Interpolation: 1st order linear
t: 50-element Vector{Float64}:
 0.0
 0.1020408163265306
 0.2040816326530612
 0.30612244897959184
 0.4081632653061224
 ⋮
 4.6938775510204085
 4.795918367346939
 4.8979591836734695
 5.0
u: 50-element Vector{Vector{Float64}}:
 [0.0, 0.1724137931034483, 0.3448275862068966, 0.5172413793103449, 0.6896551724137931, 0.8620689655172414, 1.0344827586206897, 1.206896551724138, 1.3793103448275863, 1.5517241379310345  …  28.448275862068964, 28.620689655172413, 28.79310344827586, 28.965517241379313, 29.137931034482758, 29.310344827586206, 29.482758620689655, 29.655172413793103, 29.827586206896555, 30.0]
 [0.0, 0.17241379310349564, 0.3448275862072093, 0.5172413793123272, 0.6896551724254885, 0.862068965583525, 1.0344827589757786, 1.2068965535463891, 1.379310353708087, 1.5517241793563723  …  28.448275820643673, 28.620689646291883, 28.793103446453646, 28.96551724102418, 29.137931034416518, 29.31034482757447, 29.4827586206877, 29.655172413792776, 29.827586206896513, 30.0]
 [0.0, 0.1724138117467249, 0.3448276572464026, 0.5172415843189141, 0.6896558354604316, 0.8620707934381211, 1.0344882309935757, 1.2069109680032413, 1.379350391424813, 1.5518243068723196  …  28.44817569312707, 28.62064960857575, 28.793089031996246, 28.965511769006884, 29.137929206561484, 29.31034416453989, 29.48275841568083, 29.655172342753765, 29.827586188253186, 30.0]
 [0.0, 0.1724180723087107, 0.3448393892353834, 0.5172691410859218, 0.6897179116629475, 0.8622065671105769, 1.0347778052706758, 1.2075127763561453, 1.3805674430039012, 1.554222253567815  …  28.445777746432174, 28.619432556996106, 28.792487223643853, 28.965222194729332, 29.137793432889413, 29.310282088337058, 29.482730858914078, 29.65516061076462, 29.827581927691288, 30.0]
 [0.0, 0.17250037129897575, 0.34502183801768355, 0.5176649951705653, 0.6904162692664148, 0.8635599798065833, 1.0370852193558056, 1.2116982876663236, 1.3874720675876706, 1.5660206102285164  …  28.4339793897718, 28.612527932412014, 28.788301712333965, 28.96291478064394, 29.13644002019364, 29.309583730733404, 29.482335004829572, 29.65497816198222, 29.827499628701077, 30.0]
 ⋮
 [0.0, 0.4614393800663206, 0.9236739347032462, 1.386439368972283, 1.851563420601704, 2.3177075992535756, 2.7876942156439184, 3.2591089912813254, 3.735720931301201, 4.214052274597669  …  25.78594772540233, 26.264279068698805, 26.740891008718663, 27.212305784356094, 27.682292400746412, 28.148436579398304, 28.613560631027713, 29.07632606529675, 29.538560619933687, 30.0]
 [0.0, 0.46426752760006446, 0.9285313930002487, 1.3948029724410733, 1.86104668264444, 2.331249447002487, 2.8013504305271613, 3.2772511919669443, 3.7528965222099173, 4.236021671466421  …  25.763978328533593, 26.247103477790063, 26.72274880803307, 27.19864956947283, 27.66875055299752, 28.13895331735556, 28.60519702755893, 29.07146860699975, 29.535732472399932, 30.0]
 [0.0, 0.4667997920222022, 0.933391698910398, 1.4022871779794028, 1.8705453674745856, 2.3433528371963184, 2.815053577475178, 3.2934356472551616, 3.7701776720962408, 4.255567677743931  …  25.744432322256078, 26.229822327903747, 26.70656435274485, 27.184946422524817, 27.656647162803683, 28.129454632525412, 28.5977128220206, 29.066608301089605, 29.5332002079778, 30.0]
 [0.0, 0.46888429127863634, 0.938590802821992, 1.4084378023194548, 1.8807270563962621, 2.3532656659043787, 2.8297942955536013, 3.306619606648261, 3.7888653821560094, 4.271367024660429  …  25.728632975339583, 26.211134617843985, 26.69338039335174, 27.170205704446403, 27.64673433409563, 28.119272943603733, 28.591562197680545, 29.061409197178005, 29.53111570872137, 30.0]

Equation learning

To now define the equation learning problem, we note that all we need to learn is $D(q)$. The basis expansion we use is

\[D(q) = \dfrac{\theta_1^d}{q} + \dfrac{\theta_2^d}{q^2} + \dfrac{\theta_3^d}{q^3},\]

which we can define as follows:

diffusion_basis = BasisSet(
    (q, k) -> inv(q),
    (q, k) -> inv(q^2),
    (q, k) -> inv(q^3),
)

(::BasisSet{Tuple{Main.var"##19533".var"#3#6", Main.var"##19533".var"#4#7", Main.var"##19533".var"#5#8"}}) (generic function with 3 methods)

This could have also been defined using

diffusion_basis = PolynomialBasis(-1, -3)

(::BasisSet{Tuple{StepwiseEQL.var"#52#54"{Int64}, StepwiseEQL.var"#52#54"{Int64}, StepwiseEQL.var"#52#54"{Int64}}}) (generic function with 3 methods)

which is simpler. Next, let us obtain the results. The call to stepwise_selection is simple in this case. To start, we use no pruning:

eql_sol = stepwise_selection(sol; diffusion_basis)

StepwiseEQL Solution.
    D(q) = θ₂ᵈ ϕ₂ᵈ(q)
┌──────┬──────────────────────┬───────┐
│ Step │   θ₁ᵈ    θ₂ᵈ     θ₃ᵈ │  Loss │
├──────┼──────────────────────┼───────┤
│    1 │ -5.97  70.73  -27.06 │   Inf │
│    2 │ -1.46  47.11    0.00 │ -4.33 │
│    3 │  0.00  43.52    0.00 │ -5.18 │
└──────┴──────────────────────┴───────┘

The coefficient for $\theta_2^d$ is not perfect. If we instead use some pruning on $q$, we can obtain an improved result:

eql_sol2 = stepwise_selection(sol; diffusion_basis, threshold_tol=(q=0.1,))

StepwiseEQL Solution.
    D(q) = θ₂ᵈ ϕ₂ᵈ(q)
┌──────┬─────────────────────┬───────┐
│ Step │   θ₁ᵈ    θ₂ᵈ    θ₃ᵈ │  Loss │
├──────┼─────────────────────┼───────┤
│    1 │ -1.45  42.48  13.76 │ -4.19 │
│    2 │  0.00  37.79  19.69 │ -5.46 │
│    3 │  0.00  49.83   0.00 │ -7.97 │
└──────┴─────────────────────┴───────┘

(Note that the comma after 0.1 is necessary so that we get a NamedTuple, otherwise it doesn't parse as a Tuple. Compare:

threshold_tol = (q = 0.1) # same as threshold_tol = q = 0.1

0.1

threshold_tol = (q=0.1,)

(q = 0.1,)

This is only for NamedTuples with a single element, e.g. (a = 0.1, b = 0.2) is fine.) We note also that if you want the LaTeX form of these tables, for eql_sol you could use for example:

latex_table(eql_sol)

StepwiseEQL Solution.
    D(q) = θ₂ᵈ ϕ₂ᵈ(q)
\begin{tabular}{|r|rrr|r|}
  \hline
  \textbf{Step} & \textbf{$\theta_{1}^d$ } & \textbf{$\theta_{2}^d$ } & \textbf{$\theta_{3}^d$ } & \textbf{Loss} \\\hline
  1 & -5.97 & 70.73 & \color{blue}{\textbf{-27.06}} & $\infty$ \\
  2 & \color{blue}{\textbf{-1.46}} & 47.11 & 0.00 & -4.33 \\
  3 & 0.00 & 43.52 & 0.00 & -5.18 \\\hline
\end{tabular}

Plotting

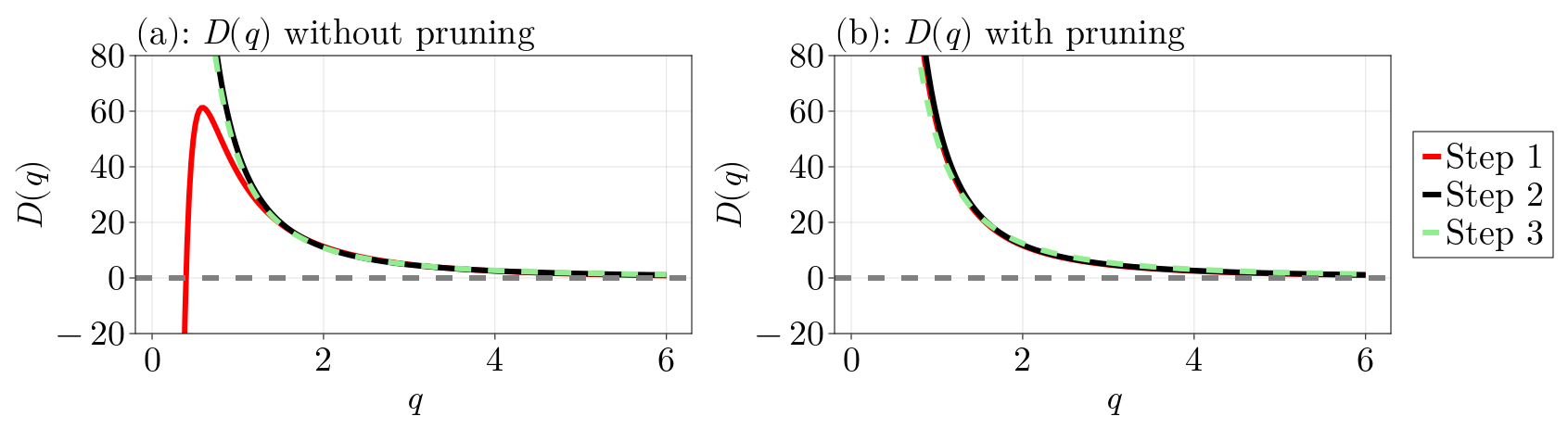

Progression of the Diffusion Curves

Let us now examine our results. First, we see how the diffusion curve is changed at each step of our procedure, comparing the results with pruning and without pruning.

fig = Figure(fontsize=38)
ax1 = Axis(fig[1, 1], xlabel=L"q", ylabel=L"D(q)",
    width=600, height=300,
    title=L"(a): $D(q)$ without pruning", titlealign=:left,
    xticks=(0:2:6, [L"%$s" for s in 0:2:6]),
    yticks=(-20:20:80, [L"%$s" for s in -20:20:80]))
ax2 = Axis(fig[1, 2], xlabel=L"q", ylabel=L"D(q)",
    width=600, height=300,
    title=L"(b): $D(q)$ with pruning", titlealign=:left,
    xticks=(0:2:6, [L"%$s" for s in 0:2:6]),
    yticks=(-20:20:80, [L"%$s" for s in -20:20:80]))
q_range = LinRange(1 / 10, 6, 250)
Dθ_no_prune = eql_sol.diffusion_theta_history
Dθ_prune = eql_sol2.diffusion_theta_history
colors = (:red, :black, :lightgreen)
linestyles = (:solid, :solid, :dash)
for j in 1:3
    lines!(ax1, q_range, diffusion_basis.(q_range, Ref(Dθ_no_prune[:, j]), Ref(nothing)), linewidth=6, linestyle=linestyles[j], color=colors[j], label=L"Step $%$(j)$")
    lines!(ax2, q_range, diffusion_basis.(q_range, Ref(Dθ_prune[:, j]), Ref(nothing)), linewidth=6, linestyle=linestyles[j], color=colors[j], label=L"Step $%$(j)$")
end
for ax in (ax1, ax2)
    ylims!(ax, -20, 80)
    hlines!(ax, [0.0], color=:grey, linewidth=6, linestyle=:dash)
end
fig[1, 3] = Legend(fig, ax1)
resize_to_layout!(fig)
fig

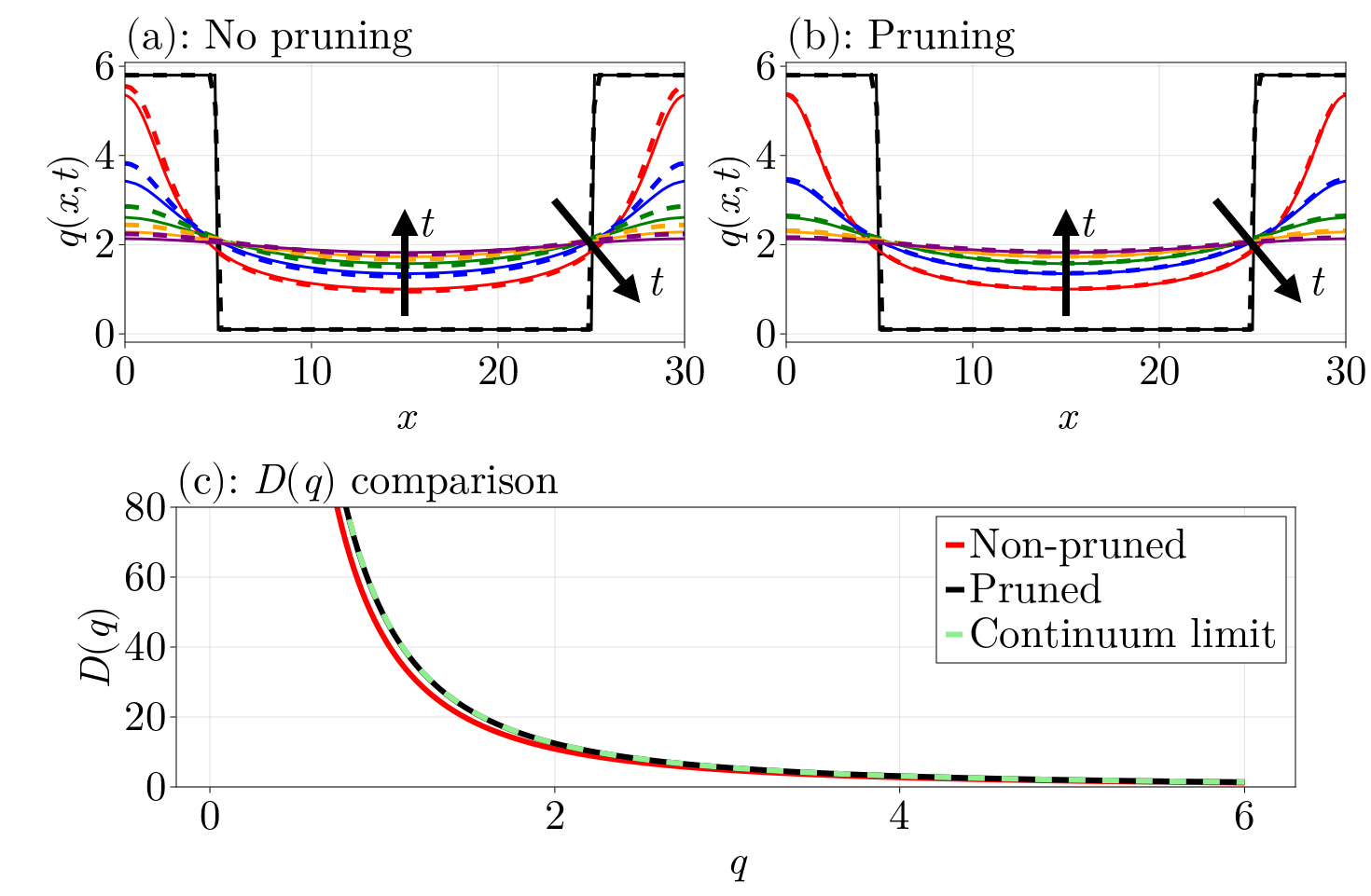

Comparing Density Results

Let us now compare the density results.

fig = Figure(fontsize=45, resolution=(1470, 961))
ax = Axis(fig[1, 1], xlabel=L"x", ylabel=L"q(x, t)",
    width=600, height=300,
    title=L"(a):$ $ No pruning", titlealign=:left,
    xticks=(0:10:30, [L"%$s" for s in 0:10:30]),
    yticks=(0:2:6, [L"%$s" for s in 0:2:6]))
ax2 = Axis(fig[1, 2], xlabel=L"x", ylabel=L"q(x, t)",
    width=600, height=300,
    title=L"(b):$ $ Pruning", titlealign=:left,
    xticks=(0:10:30, [L"%$s" for s in 0:10:30]),
    yticks=(0:2:6, [L"%$s" for s in 0:2:6]))
t = (0, 1, 2, 3, 4, 5)
colors = (:black, :red, :blue, :green, :orange, :purple)
time_indices = [findlast(≤(τ), sol.t) for τ in t]
for (j, i) in enumerate(time_indices)
    lines!(ax, eql_sol.pde.geometry.mesh_points, eql_sol.pde_sol.u[i], color=colors[j], linestyle=:dash, linewidth=5)
    lines!(ax, sol.u[i], node_densities(sol.u[i]), color=colors[j], linewidth=3)
    lines!(ax2, eql_sol2.pde.geometry.mesh_points, eql_sol2.pde_sol.u[i], color=colors[j], linestyle=:dash, linewidth=5)
    lines!(ax2, sol.u[i], node_densities(sol.u[i]), color=colors[j], linewidth=3, label=L"%$(t[j])")
end
for ax in (ax, ax2)
    arrows!(ax, [15.0, 23.0], [0.4, 3.0], [0.0, 4.0], [2.0, -2.0], color=:black, linewidth=8, arrowsize=40)
    text!(ax, [15.7, 28.0], [2.0, 0.7], text=[L"t", L"t"], color=:black, fontsize=47)
    xlims!(ax, 0, 30)
end
ax3 = Axis(fig[2, 1:2], xlabel=L"q", ylabel=L"D(q)",
    width=1200, height=300,
    title=L"(c): $D(q)$ comparison", titlealign=:left,
    xticks=(0:2:6, [L"%$s" for s in 0:2:6]),
    yticks=(0:20:80, [L"%$s" for s in 0:20:80]))
D_no_prune = diffusion_basis.(q_range, Ref(eql_sol.diffusion_theta), Ref(nothing))
D_prune = diffusion_basis.(q_range, Ref(eql_sol2.diffusion_theta), Ref(nothing))
D_cont_fnc = q -> (force_law_parameters.k / damping_constant) / q^2
D_cont = D_cont_fnc.(q_range)
lines!(ax3, q_range, D_no_prune, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Non-pruned")
lines!(ax3, q_range, D_prune, linewidth=6, color=:black, linestyle=:solid, label=L"$ $Pruned")
lines!(ax3, q_range, D_cont, linewidth=6, color=:lightgreen, linestyle=:dash, label=L"$ $Continuum limit")
axislegend(position=:rt)
ylims!(ax3, 0, 80)
fig

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using StepwiseEQL
using CairoMakie
using EpithelialDynamics1D
using OrdinaryDiffEq

force_law = (δ, p) -> p.k * (p.s - δ)
force_law_parameters = (k=50.0, s=0.2)
final_time = 5.0
damping_constant = 1.0
initial_condition = [LinRange(0, 5, 30); LinRange(25, 30, 30)] |> unique!
prob = CellProblem(;
    force_law,
    force_law_parameters,
    final_time,
    damping_constant,
    initial_condition)
sol = solve(prob, Tsit5(), saveat=LinRange(0, final_time, 50))

diffusion_basis = BasisSet(
    (q, k) -> inv(q),
    (q, k) -> inv(q^2),
    (q, k) -> inv(q^3),
)

diffusion_basis = PolynomialBasis(-1, -3)

eql_sol = stepwise_selection(sol; diffusion_basis)

eql_sol2 = stepwise_selection(sol; diffusion_basis, threshold_tol=(q=0.1,))

threshold_tol = (q = 0.1) # same as threshold_tol = q = 0.1

threshold_tol = (q=0.1,)

latex_table(eql_sol)

fig = Figure(fontsize=38)
ax1 = Axis(fig[1, 1], xlabel=L"q", ylabel=L"D(q)",
    width=600, height=300,
    title=L"(a): $D(q)$ without pruning", titlealign=:left,
    xticks=(0:2:6, [L"%$s" for s in 0:2:6]),
    yticks=(-20:20:80, [L"%$s" for s in -20:20:80]))
ax2 = Axis(fig[1, 2], xlabel=L"q", ylabel=L"D(q)",
    width=600, height=300,
    title=L"(b): $D(q)$ with pruning", titlealign=:left,
    xticks=(0:2:6, [L"%$s" for s in 0:2:6]),
    yticks=(-20:20:80, [L"%$s" for s in -20:20:80]))
q_range = LinRange(1 / 10, 6, 250)
Dθ_no_prune = eql_sol.diffusion_theta_history
Dθ_prune = eql_sol2.diffusion_theta_history
colors = (:red, :black, :lightgreen)
linestyles = (:solid, :solid, :dash)
for j in 1:3
    lines!(ax1, q_range, diffusion_basis.(q_range, Ref(Dθ_no_prune[:, j]), Ref(nothing)), linewidth=6, linestyle=linestyles[j], color=colors[j], label=L"Step $%$(j)$")
    lines!(ax2, q_range, diffusion_basis.(q_range, Ref(Dθ_prune[:, j]), Ref(nothing)), linewidth=6, linestyle=linestyles[j], color=colors[j], label=L"Step $%$(j)$")
end
for ax in (ax1, ax2)
    ylims!(ax, -20, 80)
    hlines!(ax, [0.0], color=:grey, linewidth=6, linestyle=:dash)
end
fig[1, 3] = Legend(fig, ax1)
resize_to_layout!(fig)
fig

fig = Figure(fontsize=45, resolution=(1470, 961))
ax = Axis(fig[1, 1], xlabel=L"x", ylabel=L"q(x, t)",
    width=600, height=300,
    title=L"(a):$ $ No pruning", titlealign=:left,
    xticks=(0:10:30, [L"%$s" for s in 0:10:30]),
    yticks=(0:2:6, [L"%$s" for s in 0:2:6]))
ax2 = Axis(fig[1, 2], xlabel=L"x", ylabel=L"q(x, t)",
    width=600, height=300,
    title=L"(b):$ $ Pruning", titlealign=:left,
    xticks=(0:10:30, [L"%$s" for s in 0:10:30]),
    yticks=(0:2:6, [L"%$s" for s in 0:2:6]))
t = (0, 1, 2, 3, 4, 5)
colors = (:black, :red, :blue, :green, :orange, :purple)
time_indices = [findlast(≤(τ), sol.t) for τ in t]
for (j, i) in enumerate(time_indices)
    lines!(ax, eql_sol.pde.geometry.mesh_points, eql_sol.pde_sol.u[i], color=colors[j], linestyle=:dash, linewidth=5)
    lines!(ax, sol.u[i], node_densities(sol.u[i]), color=colors[j], linewidth=3)
    lines!(ax2, eql_sol2.pde.geometry.mesh_points, eql_sol2.pde_sol.u[i], color=colors[j], linestyle=:dash, linewidth=5)
    lines!(ax2, sol.u[i], node_densities(sol.u[i]), color=colors[j], linewidth=3, label=L"%$(t[j])")
end
for ax in (ax, ax2)
    arrows!(ax, [15.0, 23.0], [0.4, 3.0], [0.0, 4.0], [2.0, -2.0], color=:black, linewidth=8, arrowsize=40)
    text!(ax, [15.7, 28.0], [2.0, 0.7], text=[L"t", L"t"], color=:black, fontsize=47)
    xlims!(ax, 0, 30)
end
ax3 = Axis(fig[2, 1:2], xlabel=L"q", ylabel=L"D(q)",
    width=1200, height=300,
    title=L"(c): $D(q)$ comparison", titlealign=:left,
    xticks=(0:2:6, [L"%$s" for s in 0:2:6]),
    yticks=(0:20:80, [L"%$s" for s in 0:20:80]))
D_no_prune = diffusion_basis.(q_range, Ref(eql_sol.diffusion_theta), Ref(nothing))
D_prune = diffusion_basis.(q_range, Ref(eql_sol2.diffusion_theta), Ref(nothing))
D_cont_fnc = q -> (force_law_parameters.k / damping_constant) / q^2
D_cont = D_cont_fnc.(q_range)
lines!(ax3, q_range, D_no_prune, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Non-pruned")
lines!(ax3, q_range, D_prune, linewidth=6, color=:black, linestyle=:solid, label=L"$ $Pruned")
lines!(ax3, q_range, D_cont, linewidth=6, color=:lightgreen, linestyle=:dash, label=L"$ $Continuum limit")
axislegend(position=:rt)
ylims!(ax3, 0, 80)
fig
