This example is also available as a Jupyter notebook: cs2.ipynb
Case Studies: Case Study 2
This example shows how we obtained the results in the paper for the second case study. Let us load in the package we will need.
using StepwiseEQL
using CairoMakie
using EpithelialDynamics1D
using OrdinaryDiffEq
using Setfield
using LinearSolveSimulating
Let us start by simulating the cell dynamics. We use the force law $F(\ell) = k(s - \ell)$ as usual.
k, η, s = 50.0, 1.0, 1 / 5
force_law = (δ, p) -> p.k * (p.s - δ)
force_law_parameters = (k=k, s=s)
initial_condition = LinRange(0, 5, 60) |> collect
prob = CellProblem(;
force_law,
force_law_parameters,
final_time=100.0,
damping_constant=η,
initial_condition,
fix_right=false)
sol = solve(prob, Tsit5(), saveat=LinRange(0, 100.0, 1000))retcode: Success
Interpolation: 1st order linear
t: 1000-element Vector{Float64}:
0.0
0.10010010010010009
0.20020020020020018
0.3003003003003003
0.40040040040040037
⋮
99.69969969969969
99.7997997997998
99.8998998998999
100.0
u: 1000-element Vector{Vector{Float64}}:
[0.0, 0.0847457627118644, 0.1694915254237288, 0.2542372881355932, 0.3389830508474576, 0.423728813559322, 0.5084745762711864, 0.5932203389830508, 0.6779661016949152, 0.7627118644067797 … 4.23728813559322, 4.322033898305085, 4.406779661016949, 4.491525423728814, 4.576271186440678, 4.661016949152542, 4.745762711864407, 4.830508474576271, 4.915254237288136, 5.0]
[0.0, 0.08474576271186425, 0.1694915254237292, 0.25423728813559265, 0.33898305084745817, 0.42372881355932146, 0.508474576271187, 0.5932203389830506, 0.6779661016949148, 0.762711864406781 … 4.236835315302549, 4.3243882103357025, 4.407450636109118, 4.500008030405869, 4.586094955162684, 4.690841206150504, 4.79252784949479, 4.923274379242477, 5.063630705437774, 5.237700604156148]
[0.0, 0.08474576271186443, 0.16949152542372878, 0.2542372881355933, 0.33898305084745767, 0.4237288135593213, 0.508474576271188, 0.593220338983049, 0.677966101694917, 0.7627118644067777 … 4.2465141859992634, 4.330901276534235, 4.430802760720429, 4.522064183397137, 4.635168935888922, 4.742894795486018, 4.877279510575617, 5.0141479656359556, 5.1784484869409, 5.35585639369578]
[0.0, 0.08474576271186464, 0.16949152542372814, 0.2542372881355946, 0.33898305084745445, 0.42372881355933, 0.5084745762711655, 0.5932203389831081, 0.6779661016947601, 0.762711864407193 … 4.25723237050814, 4.3573670237175675, 4.4549362982580885, 4.566875675192909, 4.679352538248943, 4.809290059729547, 4.944563030156533, 5.099056355930457, 5.264456507756895, 5.448636152634224]
[0.0, 0.084745762712383, 0.16949152542234872, 0.25423728813872243, 0.33898305084064084, 0.4237288135738785, 0.5084745762406028, 0.5932203390463257, 0.6779661015659898, 0.7627118646655209 … 4.27912924869909, 4.384232626495193, 4.490326342767937, 4.608410853608311, 4.730472207553159, 4.866677884442501, 5.010477504851458, 5.169755651179868, 5.340224660641128, 5.526204837029872]
⋮
[0.0, 0.1955145324067704, 0.3907867309532305, 0.5865555859473159, 0.7816001656610787, 0.977632577970293, 1.1724669220336417, 1.3687693751488976, 1.5634134466584246, 1.7599897057316751 … 9.832578468378241, 10.032572689449998, 10.230665585957821, 10.430670537789483, 10.629228418943393, 10.829237066283419, 11.028270006667945, 11.228277253459972, 11.42779202307594, 11.627794783168833]
[0.0, 0.19541020840180437, 0.39105836193654087, 0.5862439084596128, 0.7821406658261177, 0.9771174157905476, 1.1732707978093369, 1.3680571271244457, 1.5644725324358597, 1.7590892276392485 … 9.834254205411455, 10.03216958392982, 10.232131854947687, 10.430495376008865, 10.63047379676449, 10.82929673651816, 11.029285576300794, 11.228576066007403, 11.428571459133126, 11.62833440846054]
[0.0, 0.19545891563597326, 0.391024136648353, 0.5863896193155502, 0.782072860056575, 0.9773589019384226, 1.1731706932539063, 1.3683923553349133, 1.5643420319325214, 1.7595153806039439 … 9.834533173145042, 10.033023016457076, 10.232477182205013, 10.431294252055933, 10.6308865316696, 10.830037075465086, 11.02976606100394, 11.229254577532869, 11.429119312229101, 11.628948515380984]
[0.0, 0.19548478549047751, 0.39103530291603067, 0.5864670720036574, 0.7820953307762282, 0.9774874682155896, 1.1732047425227528, 1.3685712577181102, 1.5643880652452753, 1.7597435402083226 … 9.835017692166595, 10.033687117943265, 10.232986983756186, 10.431945814145724, 10.63142081442897, 10.830673741625754, 11.030323795760841, 11.229874195193434, 11.429699239628151, 11.629549146143887]Equation learning
We now define the equation learning problem. The mechanisms to learn are $D(q)$, $H(q)$, and $E(q)$. The basis functions we use are:
diffusion_basis = PolynomialBasis(-1, -3)
rhs_basis = PolynomialBasis(1, 5)
moving_boundary_basis = PolynomialBasis(-1, -3)(::BasisSet{Tuple{StepwiseEQL.var"#52#54"{Int64}, StepwiseEQL.var"#52#54"{Int64}, StepwiseEQL.var"#52#54"{Int64}}}) (generic function with 3 methods)We now learn the equations. Our first attempt is below, where we use initial=:none so that we start with no coefficients initially active.
eql_sol = stepwise_selection(sol; diffusion_basis, rhs_basis, moving_boundary_basis,
mesh_points=500, initial=:none, threshold_tol=(q=0.35,))StepwiseEQL Solution.
D(q) = θ₃ᵈ ϕ₃ᵈ(q)
H(q) = 0
E(q) = 0
┌──────┬───────────────────┬──────────────────────────────┬──────────────────┬───────┐
│ Step │ θ₁ᵈ θ₂ᵈ θ₃ᵈ │ θ₁ʰ θ₂ʰ θ₃ʰ θ₄ʰ θ₅ʰ │ θ₁ᵉ θ₂ᵉ θ₃ᵉ │ Loss │
├──────┼───────────────────┼──────────────────────────────┼──────────────────┼───────┤
│ 1 │ 0.00 0.00 0.00 │ 0.00 0.00 0.00 0.00 0.00 │ 0.00 0.00 0.00 │ -1.40 │
│ 2 │ 0.00 0.00 25.06 │ 0.00 0.00 0.00 0.00 0.00 │ 0.00 0.00 0.00 │ -0.40 │
└──────┴───────────────────┴──────────────────────────────┴──────────────────┴───────┘This result is clearly not perfect. To improve this, we limit the time range. We also re-simulate the cell dynamics with a saving frequency.
sol = solve(prob, Tsit5(), saveat=15 // 199)
eql_sol = stepwise_selection(sol; diffusion_basis, rhs_basis, moving_boundary_basis,
mesh_points=500, initial=:none, threshold_tol=(q=0.35,),
time_range=(0.0, 15.0))StepwiseEQL Solution.
D(q) = θ₂ᵈ ϕ₂ᵈ(q)
H(q) = θ₁ʰ ϕ₁ʰ(q) + θ₂ʰ ϕ₂ʰ(q)
E(q) = θ₁ᵉ ϕ₁ᵉ(q)
┌──────┬───────────────────┬───────────────────────────────┬──────────────────┬───────┐
│ Step │ θ₁ᵈ θ₂ᵈ θ₃ᵈ │ θ₁ʰ θ₂ʰ θ₃ʰ θ₄ʰ θ₅ʰ │ θ₁ᵉ θ₂ᵉ θ₃ᵉ │ Loss │
├──────┼───────────────────┼───────────────────────────────┼──────────────────┼───────┤
│ 1 │ 0.00 0.00 0.00 │ 0.00 0.00 0.00 0.00 0.00 │ 0.00 0.00 0.00 │ -3.37 │
│ 2 │ 0.00 0.00 0.00 │ 0.00 -0.03 0.00 0.00 0.00 │ 0.00 0.00 0.00 │ -2.37 │
│ 3 │ 0.00 0.00 0.00 │ 0.00 -0.03 0.00 0.00 0.00 │ 8.74 0.00 0.00 │ -3.68 │
│ 4 │ 0.00 47.38 0.00 │ 0.00 -0.03 0.00 0.00 0.00 │ 8.74 0.00 0.00 │ -4.02 │
│ 5 │ 0.00 47.38 0.00 │ 8.41 -1.69 0.00 0.00 0.00 │ 8.74 0.00 0.00 │ -8.14 │
└──────┴───────────────────┴───────────────────────────────┴──────────────────┴───────┘These results have improved slightly. To plot them, we use the following function.
function plot_results(eql_sol, sol, k, s, η, diffusion_basis, rhs_basis, moving_boundary_basis, conserve_mass=false)
t = (0, 5, 10, 25, 50, 100)
prob = sol.prob.p
prob = @set prob.final_time = 100.0
sol = solve(prob, Tsit5(), saveat=[collect(t); LinRange(0, 100, 2500)] |> sort |> unique)
time_indices = [findlast(≤(τ), sol.t) for τ in t]
colors = (:black, :red, :blue, :green, :orange, :purple, :brown)
pde = eql_sol.pde
pde = @set pde.final_time = 100.0 # need to resolve so that we plot over the complete time interval
pde_sol = solve(pde, TRBDF2(linsolve=KLUFactorization()), saveat=sol.t)
pde_continuum = deepcopy(pde)
pde_continuum.diffusion_parameters.θ .= [0, k / η, 0]
pde_continuum.boundary_conditions.rhs.p.θ .= [0, 2.0, -2.0s, 0, 0]
pde_continuum.boundary_conditions.moving_boundary.p.θ .= [0, k / η, 0]
pde_ξ = pde_continuum.geometry.mesh_points
pde_L = pde_sol[end, :]
pde_q = pde_sol[begin:(end-1), :]
cell_q = node_densities.(sol.u)
cell_r = sol.u
cell_L = sol[end, :]
q_range = LinRange(5, 12, 250)
fig = Figure(fontsize=45, resolution=(2220, 961))
top_grid = fig[1, 1] = GridLayout(1, 2)
bottom_grid = fig[2, 1] = GridLayout(1, 3)
ax_pde = Axis(top_grid[1, 1], xlabel=L"x", ylabel=L"q(x,t)", width=950, height=300,
title=L"(a):$ $ PDE comparison", titlealign=:left,
xticks=(0:5:15, [L"%$s" for s in 0:5:15]), yticks=(0:5:15, [L"%$s" for s in 0:5:15]))
for (j, i) in enumerate(time_indices)
lines!(ax_pde, pde_ξ * pde_L[i], pde_q[:, i], color=colors[j], linestyle=:dash, linewidth=8)
lines!(ax_pde, cell_r[i], cell_q[i], color=colors[j], linewidth=4, label=L"%$(t[j])")
end
arrows!(ax_pde, [6.0], [12.0], [4.0], [-3.0], color=:black, linewidth=8, arrowsize=40)
text!(ax_pde, [8.0], [11.0], text=L"t", color=:black, fontsize=63)
xlims!(ax_pde, 0, 15)
ylims!(ax_pde, 4, 16)
ax_leading_edge = Axis(top_grid[1, 2], xlabel=L"t", ylabel=L"L(t)", width=950, height=300,
title=L"(b):$ $ Leading edge comparison", titlealign=:left,
xticks=(0:10:100, [L"%$s" for s in 0:10:100]), yticks=(0:5:15, [L"%$s" for s in 0:5:15]))
lines!(ax_leading_edge, pde_sol.t, pde_L, color=:red, linestyle=:dash, linewidth=5, label=L"$ $Learned")
lines!(ax_leading_edge, sol.t, cell_L, color=:black, linewidth=3, label=L"$ $Discrete")
axislegend(position=:rb)
xlims!(ax_leading_edge, 0, 100)
ylims!(ax_leading_edge, 0, 15)
ax_diffusion = Axis(bottom_grid[1, 1],
xlabel=L"q", ylabel=L"D(q)", width=600, height=300,
title=L"(c): $D(q)$ comparison", titlealign=:left,
xticks=(5:3:12, [L"%$s" for s in 5:3:12]), yticks=(0:5, [L"%$s" for s in 0:5]))
D_cont_fnc = q -> (k / η) / q^2
D_cont = D_cont_fnc.(q_range)
local D_sol
try
D_sol = diffusion_basis.(q_range, Ref(eql_sol.diffusion_theta), Ref(nothing))
catch e
print(e)
D_sol = D_cont
end
lines!(ax_diffusion, q_range, D_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_diffusion, q_range, D_cont, linewidth=6, color=:black, linestyle=:dashdot, label=L"$ $Continuum limit")
axislegend(position=:rt)
xlims!(ax_diffusion, 5, 12)
ylims!(ax_diffusion, 0, 5)
ax_rhs = Axis(bottom_grid[1, 2],
xlabel=L"q", ylabel=L"H(q)", width=600, height=300,
title=L"(d): $H(q)$ comparison", titlealign=:left,
xticks=(5:3:12, [L"%$s" for s in 5:3:12]), yticks=(-100:40:20, [L"%$s" for s in -100:40:20]))
RHS_cont_fnc = q -> 2q^2 * (1 - s * q)
RHS_cont = RHS_cont_fnc.(q_range)
local RHS_sol
try
RHS_sol = rhs_basis.(q_range, Ref(eql_sol.rhs_theta), Ref(nothing))
catch e
print(e)
RHS_sol = RHS_cont
end
lines!(ax_rhs, q_range, RHS_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_rhs, q_range, RHS_cont, linewidth=6, color=:black, linestyle=:dashdot, label=L"$ $Continuum limit")
axislegend(position=:rt)
xlims!(ax_rhs, 5, 12)
ylims!(ax_rhs, -100, 20)
ax_moving_boundary = Axis(bottom_grid[1, 3],
xlabel=L"q", ylabel=L"E(q)", width=600, height=300,
title=L"(e): $E(q)$ comparison", titlealign=:left,
xticks=(5:3:12, [L"%$s" for s in 5:3:12]), yticks=(0:5, [L"%$s" for s in 0:5]))
MB_cont_fnc = q -> (k / η) / q^2
MB_cont = MB_cont_fnc.(q_range)
local MB_sol
try
if !conserve_mass
MB_sol = moving_boundary_basis.(q_range, Ref(eql_sol.moving_boundary_theta), Ref(nothing))
else
MB_sol = moving_boundary_basis.(q_range, Ref(eql_sol.diffusion_theta), Ref(nothing))
end
catch e
print(e)
MB_sol = MB_cont
end
lines!(ax_moving_boundary, q_range, MB_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_moving_boundary, q_range, MB_cont, linewidth=6, color=:black, linestyle=:dashdot, label=L"$ $Continuum limit")
axislegend(position=:rt)
xlims!(ax_moving_boundary, 5, 12)
ylims!(ax_moving_boundary, 0, 5)
fig

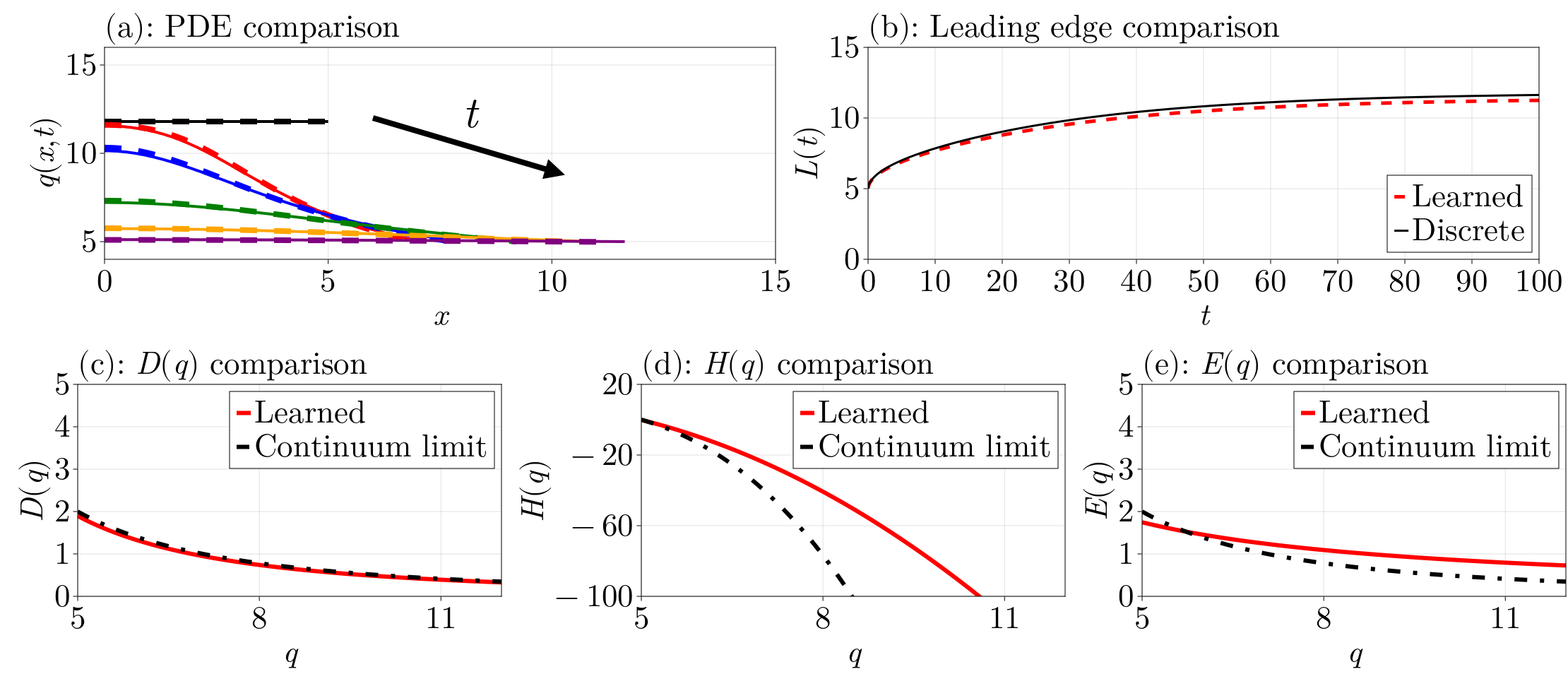

endUsing this function, we obtain the plot below.
fig = plot_results(eql_sol, sol, k, s, η, diffusion_basis, rhs_basis, moving_boundary_basis)

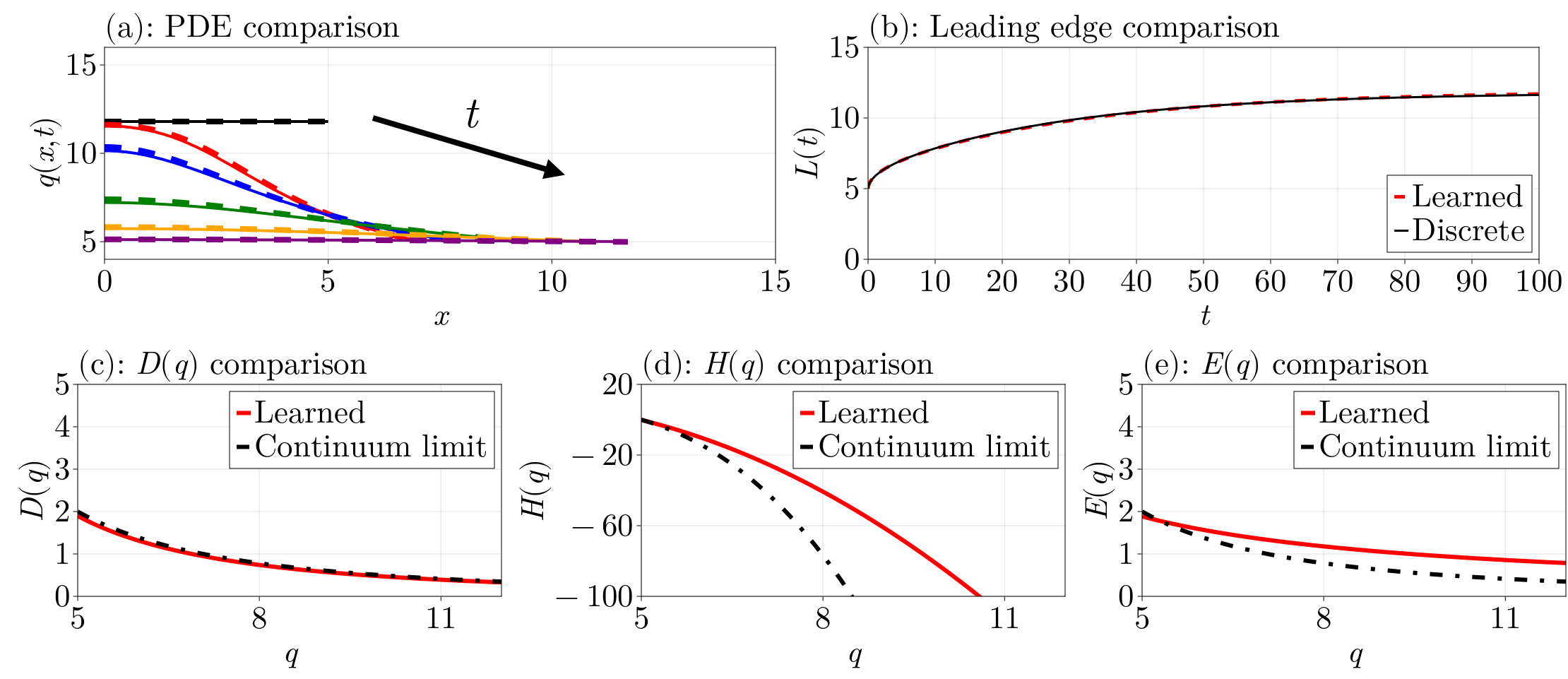

Since the leading edges start to diverge for late time, we need to prune the matrix slightly. We do this as follows, giving our improved results.
eql_sol = stepwise_selection(sol; diffusion_basis, rhs_basis, moving_boundary_basis,
mesh_points=500, initial=:none, threshold_tol=(q=0.35, dL=0.1),
time_range=(0.0, 15.0))StepwiseEQL Solution.
D(q) = θ₂ᵈ ϕ₂ᵈ(q)
H(q) = θ₁ʰ ϕ₁ʰ(q) + θ₂ʰ ϕ₂ʰ(q)
E(q) = θ₁ᵉ ϕ₁ᵉ(q)
┌──────┬───────────────────┬───────────────────────────────┬──────────────────┬────────┐
│ Step │ θ₁ᵈ θ₂ᵈ θ₃ᵈ │ θ₁ʰ θ₂ʰ θ₃ʰ θ₄ʰ θ₅ʰ │ θ₁ᵉ θ₂ᵉ θ₃ᵉ │ Loss │
├──────┼───────────────────┼───────────────────────────────┼──────────────────┼────────┤
│ 1 │ 0.00 0.00 0.00 │ 0.00 0.00 0.00 0.00 0.00 │ 0.00 0.00 0.00 │ -3.37 │
│ 2 │ 0.00 0.00 0.00 │ 0.00 -0.03 0.00 0.00 0.00 │ 0.00 0.00 0.00 │ -2.37 │
│ 3 │ 0.00 0.00 0.00 │ 0.00 -0.03 0.00 0.00 0.00 │ 9.42 0.00 0.00 │ -3.93 │
│ 4 │ 0.00 47.38 0.00 │ 0.00 -0.03 0.00 0.00 0.00 │ 9.42 0.00 0.00 │ -4.41 │
│ 5 │ 0.00 47.38 0.00 │ 8.41 -1.69 0.00 0.00 0.00 │ 9.42 0.00 0.00 │ -12.23 │
└──────┴───────────────────┴───────────────────────────────┴──────────────────┴────────┘fig = plot_results(eql_sol, sol, k, s, η, diffusion_basis, rhs_basis, moving_boundary_basis)
Conservation of mass

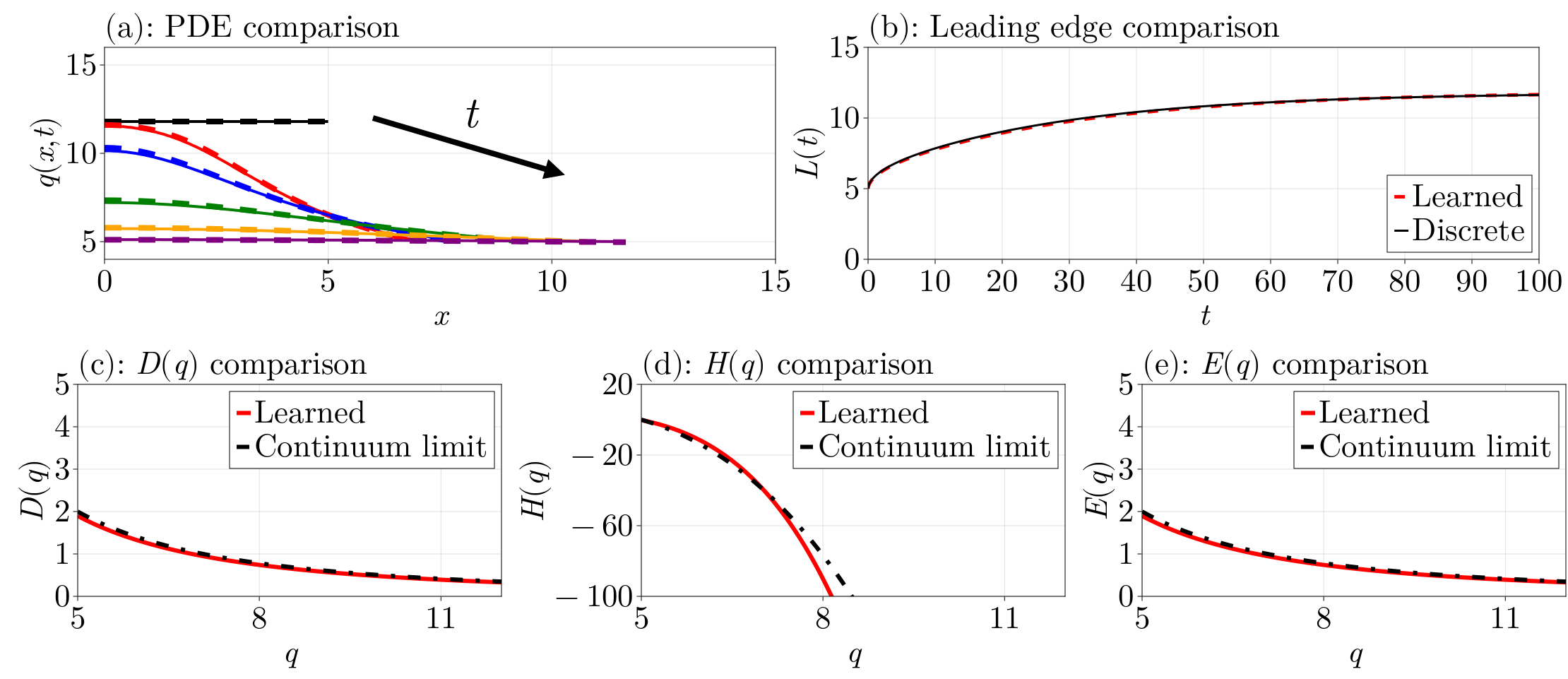

If we want to enforce conservation of mass, we can set $D(q) = E(q)$ by simply using the keyword argument conserve_mass=true as below. These are the results that we describe in more detail in the supplementary material of our paper.
eql_sol = stepwise_selection(sol; diffusion_basis, rhs_basis, moving_boundary_basis,
mesh_points=500, initial=:none, threshold_tol=(q=0.35, dL=0.1),
time_range=(0.0, 15.0), conserve_mass=true)StepwiseEQL Solution.
D(q) = θ₂ᵈ ϕ₂ᵈ(q)
H(q) = θ₂ʰ ϕ₂ʰ(q) + θ₅ʰ ϕ₅ʰ(q)
┌──────┬───────────────────┬────────────────────────────────┬────────┐
│ Step │ θ₁ᵈ θ₂ᵈ θ₃ᵈ │ θ₁ʰ θ₂ʰ θ₃ʰ θ₄ʰ θ₅ʰ │ Loss │
├──────┼───────────────────┼────────────────────────────────┼────────┤
│ 1 │ 0.00 0.00 0.00 │ 0.00 0.00 0.00 0.00 0.00 │ -3.37 │
│ 2 │ 0.00 0.00 0.00 │ 0.00 -0.03 0.00 0.00 0.00 │ -2.37 │
│ 3 │ 0.00 47.41 0.00 │ 0.00 -0.03 0.00 0.00 0.00 │ -3.85 │
│ 4 │ 0.00 47.41 0.00 │ 0.00 0.44 0.00 0.00 -0.00 │ -10.64 │
└──────┴───────────────────┴────────────────────────────────┴────────┘fig = plot_results(eql_sol, sol, k, s, η, diffusion_basis, rhs_basis, moving_boundary_basis, true)
Just the code
An uncommented version of this example is given below. You can view the source code for this file here.
using StepwiseEQL
using CairoMakie
using EpithelialDynamics1D
using OrdinaryDiffEq
using Setfield
using LinearSolve
k, η, s = 50.0, 1.0, 1 / 5
force_law = (δ, p) -> p.k * (p.s - δ)
force_law_parameters = (k=k, s=s)
initial_condition = LinRange(0, 5, 60) |> collect
prob = CellProblem(;
force_law,
force_law_parameters,
final_time=100.0,
damping_constant=η,
initial_condition,
fix_right=false)
sol = solve(prob, Tsit5(), saveat=LinRange(0, 100.0, 1000))
diffusion_basis = PolynomialBasis(-1, -3)
rhs_basis = PolynomialBasis(1, 5)
moving_boundary_basis = PolynomialBasis(-1, -3)
eql_sol = stepwise_selection(sol; diffusion_basis, rhs_basis, moving_boundary_basis,
mesh_points=500, initial=:none, threshold_tol=(q=0.35,))
sol = solve(prob, Tsit5(), saveat=15 // 199)
eql_sol = stepwise_selection(sol; diffusion_basis, rhs_basis, moving_boundary_basis,
mesh_points=500, initial=:none, threshold_tol=(q=0.35,),
time_range=(0.0, 15.0))
function plot_results(eql_sol, sol, k, s, η, diffusion_basis, rhs_basis, moving_boundary_basis, conserve_mass=false)
t = (0, 5, 10, 25, 50, 100)
prob = sol.prob.p
prob = @set prob.final_time = 100.0
sol = solve(prob, Tsit5(), saveat=[collect(t); LinRange(0, 100, 2500)] |> sort |> unique)
time_indices = [findlast(≤(τ), sol.t) for τ in t]
colors = (:black, :red, :blue, :green, :orange, :purple, :brown)
pde = eql_sol.pde
pde = @set pde.final_time = 100.0 # need to resolve so that we plot over the complete time interval
pde_sol = solve(pde, TRBDF2(linsolve=KLUFactorization()), saveat=sol.t)
pde_continuum = deepcopy(pde)
pde_continuum.diffusion_parameters.θ .= [0, k / η, 0]
pde_continuum.boundary_conditions.rhs.p.θ .= [0, 2.0, -2.0s, 0, 0]
pde_continuum.boundary_conditions.moving_boundary.p.θ .= [0, k / η, 0]
pde_ξ = pde_continuum.geometry.mesh_points
pde_L = pde_sol[end, :]
pde_q = pde_sol[begin:(end-1), :]
cell_q = node_densities.(sol.u)
cell_r = sol.u
cell_L = sol[end, :]
q_range = LinRange(5, 12, 250)
fig = Figure(fontsize=45, resolution=(2220, 961))
top_grid = fig[1, 1] = GridLayout(1, 2)
bottom_grid = fig[2, 1] = GridLayout(1, 3)
ax_pde = Axis(top_grid[1, 1], xlabel=L"x", ylabel=L"q(x,t)", width=950, height=300,
title=L"(a):$ $ PDE comparison", titlealign=:left,
xticks=(0:5:15, [L"%$s" for s in 0:5:15]), yticks=(0:5:15, [L"%$s" for s in 0:5:15]))
for (j, i) in enumerate(time_indices)
lines!(ax_pde, pde_ξ * pde_L[i], pde_q[:, i], color=colors[j], linestyle=:dash, linewidth=8)
lines!(ax_pde, cell_r[i], cell_q[i], color=colors[j], linewidth=4, label=L"%$(t[j])")
end
arrows!(ax_pde, [6.0], [12.0], [4.0], [-3.0], color=:black, linewidth=8, arrowsize=40)
text!(ax_pde, [8.0], [11.0], text=L"t", color=:black, fontsize=63)
xlims!(ax_pde, 0, 15)
ylims!(ax_pde, 4, 16)
ax_leading_edge = Axis(top_grid[1, 2], xlabel=L"t", ylabel=L"L(t)", width=950, height=300,
title=L"(b):$ $ Leading edge comparison", titlealign=:left,
xticks=(0:10:100, [L"%$s" for s in 0:10:100]), yticks=(0:5:15, [L"%$s" for s in 0:5:15]))
lines!(ax_leading_edge, pde_sol.t, pde_L, color=:red, linestyle=:dash, linewidth=5, label=L"$ $Learned")
lines!(ax_leading_edge, sol.t, cell_L, color=:black, linewidth=3, label=L"$ $Discrete")
axislegend(position=:rb)
xlims!(ax_leading_edge, 0, 100)
ylims!(ax_leading_edge, 0, 15)
ax_diffusion = Axis(bottom_grid[1, 1],
xlabel=L"q", ylabel=L"D(q)", width=600, height=300,
title=L"(c): $D(q)$ comparison", titlealign=:left,
xticks=(5:3:12, [L"%$s" for s in 5:3:12]), yticks=(0:5, [L"%$s" for s in 0:5]))
D_cont_fnc = q -> (k / η) / q^2
D_cont = D_cont_fnc.(q_range)
local D_sol
try
D_sol = diffusion_basis.(q_range, Ref(eql_sol.diffusion_theta), Ref(nothing))
catch e
print(e)
D_sol = D_cont
end
lines!(ax_diffusion, q_range, D_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_diffusion, q_range, D_cont, linewidth=6, color=:black, linestyle=:dashdot, label=L"$ $Continuum limit")
axislegend(position=:rt)
xlims!(ax_diffusion, 5, 12)
ylims!(ax_diffusion, 0, 5)
ax_rhs = Axis(bottom_grid[1, 2],
xlabel=L"q", ylabel=L"H(q)", width=600, height=300,
title=L"(d): $H(q)$ comparison", titlealign=:left,
xticks=(5:3:12, [L"%$s" for s in 5:3:12]), yticks=(-100:40:20, [L"%$s" for s in -100:40:20]))
RHS_cont_fnc = q -> 2q^2 * (1 - s * q)
RHS_cont = RHS_cont_fnc.(q_range)
local RHS_sol
try
RHS_sol = rhs_basis.(q_range, Ref(eql_sol.rhs_theta), Ref(nothing))
catch e
print(e)
RHS_sol = RHS_cont
end
lines!(ax_rhs, q_range, RHS_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_rhs, q_range, RHS_cont, linewidth=6, color=:black, linestyle=:dashdot, label=L"$ $Continuum limit")
axislegend(position=:rt)
xlims!(ax_rhs, 5, 12)
ylims!(ax_rhs, -100, 20)
ax_moving_boundary = Axis(bottom_grid[1, 3],
xlabel=L"q", ylabel=L"E(q)", width=600, height=300,
title=L"(e): $E(q)$ comparison", titlealign=:left,
xticks=(5:3:12, [L"%$s" for s in 5:3:12]), yticks=(0:5, [L"%$s" for s in 0:5]))
MB_cont_fnc = q -> (k / η) / q^2
MB_cont = MB_cont_fnc.(q_range)
local MB_sol
try
if !conserve_mass
MB_sol = moving_boundary_basis.(q_range, Ref(eql_sol.moving_boundary_theta), Ref(nothing))
else
MB_sol = moving_boundary_basis.(q_range, Ref(eql_sol.diffusion_theta), Ref(nothing))
end
catch e
print(e)
MB_sol = MB_cont
end
lines!(ax_moving_boundary, q_range, MB_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_moving_boundary, q_range, MB_cont, linewidth=6, color=:black, linestyle=:dashdot, label=L"$ $Continuum limit")
axislegend(position=:rt)
xlims!(ax_moving_boundary, 5, 12)
ylims!(ax_moving_boundary, 0, 5)
fig
end;
fig = plot_results(eql_sol, sol, k, s, η, diffusion_basis, rhs_basis, moving_boundary_basis)
eql_sol = stepwise_selection(sol; diffusion_basis, rhs_basis, moving_boundary_basis,
mesh_points=500, initial=:none, threshold_tol=(q=0.35, dL=0.1),
time_range=(0.0, 15.0))
fig = plot_results(eql_sol, sol, k, s, η, diffusion_basis, rhs_basis, moving_boundary_basis)
eql_sol = stepwise_selection(sol; diffusion_basis, rhs_basis, moving_boundary_basis,
mesh_points=500, initial=:none, threshold_tol=(q=0.35, dL=0.1),
time_range=(0.0, 15.0), conserve_mass=true)
fig = plot_results(eql_sol, sol, k, s, η, diffusion_basis, rhs_basis, moving_boundary_basis, true)This page was generated using Literate.jl.
