Case Studies: Case Study 3; Accurate continuum limit
This example shows how we obtained the results in the paper for the third case study, for the case that the continuum limit is accurate. Let us load in the packages we will need.
using StepwiseEQL
using CairoMakie
using EpithelialDynamics1D
using OrdinaryDiffEq
using RandomSimulating
Let us start by defining the cell problem. We use the force law $F(\ell) = k(s-\ell)$ and the proliferation law $G(\ell) = \beta[1 - 1/(K\ell)]$.
final_time = 50.0
domain_length = 30.0
midpoint = domain_length / 2
initial_condition = [LinRange(0, 5, 30); LinRange(25, 30, 30)] |> unique!
damping_constant = 1.0
resting_spring_length = 0.2
spring_constant = 50.0
k = spring_constant
force_law_parameters = (s=resting_spring_length, k=spring_constant)
force_law = (δ, p) -> p.k * (p.s - δ)
Δt = 1e-2
K = 15.0
β = 0.15
G = (δ, p) -> p.β * (one(δ) - inv(p.K * δ))
Gp = (β=β, K=K)
prob = CellProblem(;
final_time,
initial_condition,
damping_constant,
force_law,
force_law_parameters,
proliferation_law=G,
proliferation_period=Δt,
proliferation_law_parameters=Gp)Before we solve the problem, we note that the stochastic nature of the proliferation mechanism implies that the results are not deterministic. To make the results deterministic, we disable multithreading by providing EnsembleSerial().
ens_prob = EnsembleProblem(prob)
Random.seed!(292919)
esol = solve(ens_prob, Tsit5(), EnsembleSerial(); trajectories=1000, saveat=0.1);If you do not care about the non-deterministic behaviour and just want a fast result, just do not provide the third argument.
Equation learning
We now learn the equations. The basis expansison we use are:
diffusion_basis = PolynomialBasis(-1, -3)
reaction_basis = PolynomialBasis(1, 5)(::BasisSet{NTuple{5, StepwiseEQL.var"#52#54"{Int64}}}) (generic function with 3 methods)To learn the equations, we use the call below. We use 50 knots for averaging, and prune with $\tau_q = 0.1$.
eql_sol = stepwise_selection(esol; diffusion_basis, reaction_basis,
threshold_tol=(q=0.1,), mesh_points=1000,
initial=:all, num_knots=50)StepwiseEQL Solution.
D(q) = θ₂ᵈ ϕ₂ᵈ(q)
R(q) = θ₁ʳ ϕ₁ʳ(q) + θ₂ʳ ϕ₂ʳ(q)
┌──────┬─────────────────────────┬──────────────────────────────────────────────┬───────┐
│ Step │ θ₁ᵈ θ₂ᵈ θ₃ᵈ │ θ₁ʳ θ₂ʳ θ₃ʳ θ₄ʳ θ₅ʳ │ Loss │
├──────┼─────────────────────────┼──────────────────────────────────────────────┼───────┤
│ 1 │ -11.66 147.43 -191.51 │ 0.13 -0.00 -0.00 5.83e-05 -1.13e-06 │ Inf │
│ 2 │ -2.24 60.86 0.00 │ 0.13 -0.00 -5.72e-04 2.62e-05 -3.49e-07 │ -0.71 │
│ 3 │ -2.25 60.90 0.00 │ 0.14 -0.01 0.00 -1.25e-05 5.95e-07 │ -1.92 │
│ 4 │ 0.00 52.95 0.00 │ 0.14 -0.01 0.00 -1.36e-05 6.49e-07 │ -3.35 │
│ 5 │ 0.00 53.02 0.00 │ 0.15 -0.01 0.00 0.00 3.23e-08 │ -4.98 │
│ 6 │ 0.00 52.97 0.00 │ 0.15 -0.01 0.00 0.00 0.00 │ -5.70 │
└──────┴─────────────────────────┴──────────────────────────────────────────────┴───────┘Plotting

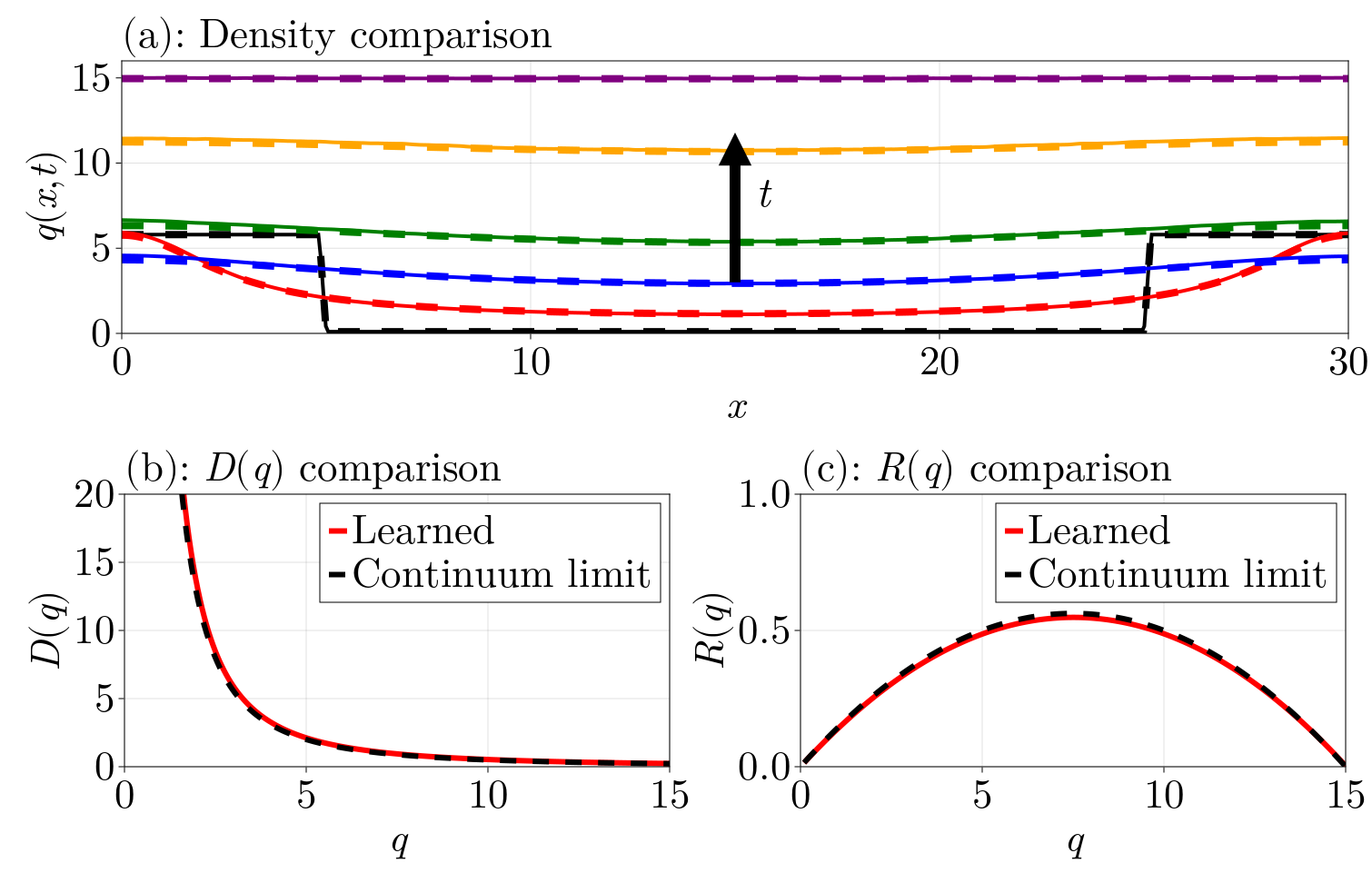

We plot the results as follows. To improve the plot visually, we need to recompute the AveragedODESolution so that there are more knots, since 50 leads to a jagged plot.
asol = AveragedODESolution(esol, 500) # 500 knots
fig = Figure(fontsize=45, resolution=(1510, 961))
ax = Axis(fig[1, 1:2], xlabel=L"x", ylabel=L"q(x, t)",
width=1350, height=300,
title=L"(a):$ $ Density comparison", titlealign=:left,
xticks=(0:10:30, [L"%$s" for s in 0:10:30]),
yticks=(0:5:15, [L"%$s" for s in 0:5:15]))
t = (0, 1, 5, 10, 20, 50)
colors = (:black, :red, :blue, :green, :orange, :purple)
time_indices = [findlast(≤(τ), esol[1].t) for τ in t]
for (j, i) in enumerate(time_indices)
lines!(ax, eql_sol.pde.geometry.mesh_points, eql_sol.pde_sol.u[i], color=colors[j], linestyle=:dash, linewidth=8)
lines!(ax, asol.u[i], asol.q[i], color=colors[j], linewidth=4)
end
arrows!(ax, [15.0], [3.0], [0.0], [7.5], color=:black, linewidth=12, arrowsize=50)
text!(ax, [15.5], [7.0], text=L"t", color=:black, fontsize=47)
xlims!(ax, 0, 30)
ylims!(ax, 0, 16)
ax2 = Axis(fig[2, 1], xlabel=L"q", ylabel=L"D(q)",
width=600, height=300,
title=L"(b): $D(q)$ comparison", titlealign=:left,
xticks=(0:5:15, [L"%$s" for s in 0:5:15]),
yticks=(0:5:20, [L"%$s" for s in 0:5:20]))
q_range = LinRange(1 / 10, 15, 250)
D_cont_fnc = q -> (force_law_parameters.k / damping_constant) / q^2
R_cont_fnc = q -> β * q * (1 - q / K)
D_sol = diffusion_basis.(q_range, Ref(eql_sol.diffusion_theta), Ref(nothing))
R_sol = reaction_basis.(q_range, Ref(eql_sol.reaction_theta), Ref(nothing))
D_cont = D_cont_fnc.(q_range)
R_cont = R_cont_fnc.(q_range)
lines!(ax2, q_range, D_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax2, q_range, D_cont, linewidth=6, color=:black, linestyle=:dash, label=L"$ $Continuum limit")
axislegend(position=:rt)
ax3 = Axis(fig[2, 2], xlabel=L"q", ylabel=L"R(q)",
width=600, height=300,
title=L"(c): $R(q)$ comparison", titlealign=:left,
xticks=(0:5:15, [L"%$s" for s in 0:5:15]),
yticks=(0:0.5:1.5, [L"%$s" for s in 0:0.5:1.5]))
lines!(ax3, q_range, R_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax3, q_range, R_cont, linewidth=6, color=:black, linestyle=:dash, label=L"$ $Continuum limit")
axislegend(position=:rt)
ylims!(ax2, 0, 20)
ylims!(ax3, 0, 1)
xlims!(ax2, 0, 15)
xlims!(ax3, 0, 15)
fig
