This example is also available as a Jupyter notebook: cs3b.ipynb
Case Studies: Case Study 3; Inaccurate continuum limit
This example shows how we obtained the results in the paper for the third case study, for the case that the continuum limit is inaccurate. Let us load in the packages we will need.
using StepwiseEQL
using CairoMakie
using EpithelialDynamics1D
using OrdinaryDiffEq
using RandomSimulating
We start by simulating the results.
final_time = 75.0
domain_length = 30.0
midpoint = domain_length / 2
initial_condition = [LinRange(0, 5, 30); LinRange(25, 30, 30)] |> unique!
damping_constant = 1.0
resting_spring_length = 0.2
spring_constant = 1 / 5
k = spring_constant
force_law_parameters = (s=resting_spring_length, k=spring_constant)
force_law = (δ, p) -> p.k * (p.s - δ)
Δt = 1e-2
K = 15.0
β = 0.15
G = (δ, p) -> p.β * (one(δ) - inv(p.K * δ))
Gp = (β=β, K=K)
prob = CellProblem(;
final_time,
initial_condition,
damping_constant,
force_law,
force_law_parameters,
proliferation_law=G,
proliferation_period=Δt,
proliferation_law_parameters=Gp)
ens_prob = EnsembleProblem(prob)
Random.seed!(292919)
esol = solve(ens_prob, Tsit5(), EnsembleSerial(); trajectories=1000, saveat=0.1);Equation learning
We now learn the equations.
diffusion_basis = PolynomialBasis(-1, -3)
reaction_basis = PolynomialBasis(1, 5)
eql_sol = stepwise_selection(esol; diffusion_basis, reaction_basis,
threshold_tol=(q=0.25,), mesh_points=1000,
initial=:none, num_knots=200)StepwiseEQL Solution.
D(q) = θ₂ᵈ ϕ₂ᵈ(q)
R(q) = θ₁ʳ ϕ₁ʳ(q) + θ₂ʳ ϕ₂ʳ(q) + θ₃ʳ ϕ₃ʳ(q) + θ₄ʳ ϕ₄ʳ(q)
┌──────┬──────────────────┬────────────────────────────────────────┬───────┐
│ Step │ θ₁ᵈ θ₂ᵈ θ₃ᵈ │ θ₁ʳ θ₂ʳ θ₃ʳ θ₄ʳ θ₅ʳ │ Loss │
├──────┼──────────────────┼────────────────────────────────────────┼───────┤
│ 1 │ 0.00 0.00 0.00 │ 0.00 0.00 0.00 0.00 0.00 │ -0.33 │
│ 2 │ 0.00 0.00 0.00 │ 0.02 0.00 0.00 0.00 0.00 │ 0.51 │
│ 3 │ 0.00 0.00 0.00 │ 0.11 -0.01 0.00 0.00 0.00 │ 0.20 │
│ 4 │ 0.00 0.11 0.00 │ 0.11 -0.01 0.00 0.00 0.00 │ -0.04 │
│ 5 │ 0.00 0.12 0.00 │ 0.13 -0.01 1.59e-04 0.00 0.00 │ -0.46 │
│ 6 │ 0.00 0.12 0.00 │ 0.16 -0.02 7.49e-04 -1.69e-05 0.00 │ -1.13 │
└──────┴──────────────────┴────────────────────────────────────────┴───────┘Plotting

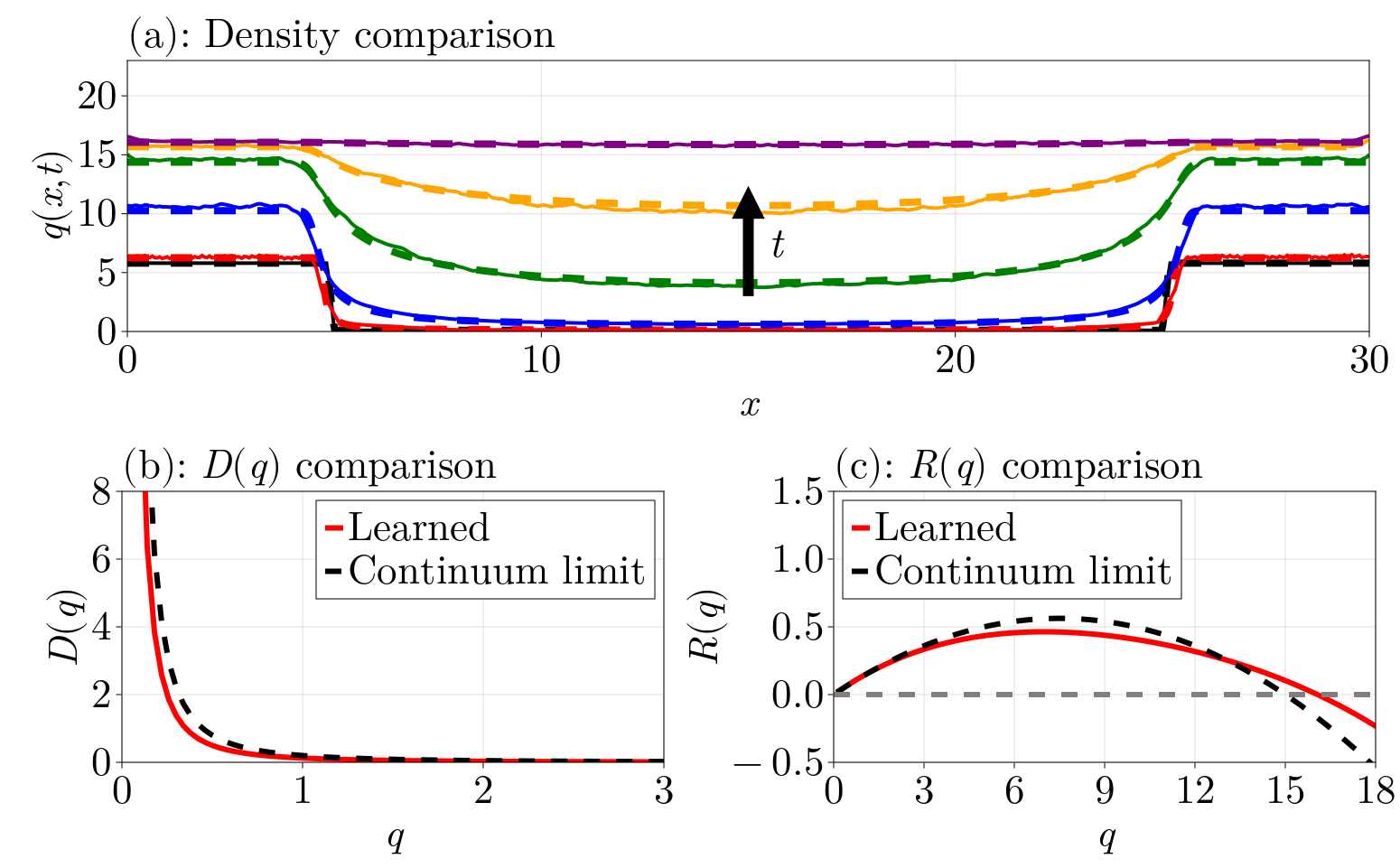

We plot the results as follows. To improve the plot visually, we need to recompute the AveragedODESolution so that there are more knots.
avg_sol = AveragedODESolution(esol, 500)
fig = Figure(fontsize=45, resolution=(1550, 961))
ax = Axis(fig[1, 1:2], xlabel=L"x", ylabel=L"q(x, t)",
width=1375, height=300,
title=L"(a):$ $ Density comparison", titlealign=:left,
xticks=(0:10:30, [L"%$s" for s in 0:10:30]),
yticks=(0:5:20, [L"%$s" for s in 0:5:20]))
t = (0, 1, 10, 25, 40, 75)
colors = (:black, :red, :blue, :green, :orange, :purple)
time_indices = [findlast(≤(τ), esol[1].t) for τ in t]
for (j, i) in enumerate(time_indices)
lines!(ax, eql_sol.pde.geometry.mesh_points, eql_sol.pde_sol.u[i], color=colors[j], linestyle=:dash, linewidth=8)
lines!(ax, avg_sol.u[i], avg_sol.q[i], color=colors[j], linewidth=4, label=L"%$(t[j])")
end
arrows!(ax, [15.0], [3.0], [0.0], [7.5], color=:black, linewidth=12, arrowsize=50)
text!(ax, [15.5], [5.7], text=L"t", color=:black, fontsize=47)
xlims!(ax, 0, 30)
ylims!(ax, 0, 23)
ax2 = Axis(fig[2, 1],xlabel=L"q",ylabel=L"D(q)",
width=600,height=300,
title=L"(b): $D(q)$ comparison",titlealign=:left,
xticks=(0:1:3, [L"%$s" for s in 0:1:3]),
yticks=(0:2:8, [L"%$s" for s in 0:2:8]))
q_range = LinRange(1 / 10, 20, 500)
D_cont_fnc = q -> (force_law_parameters.k / damping_constant) / q^2
R_cont_fnc = q -> β * q * (1 - q / K)
D_sol = diffusion_basis.(q_range, Ref(eql_sol.diffusion_theta), Ref(nothing))
R_sol = reaction_basis.(q_range, Ref(eql_sol.reaction_theta), Ref(nothing))
D_cont = D_cont_fnc.(q_range)
R_cont = R_cont_fnc.(q_range)
lines!(ax2, q_range, D_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax2, q_range, D_cont, linewidth=6, color=:black, linestyle=:dash, label=L"$ $Continuum limit")
axislegend(position=:rt)
ax3 = Axis(fig[2, 2], xlabel=L"q", ylabel=L"R(q)",
width=600, height=300,
title=L"(c): $R(q)$ comparison",titlealign=:left,
xticks=(0:3:18, [L"%$s" for s in 0:3:20]),
yticks=(-0.5:0.5:1.5, [L"%$s" for s in -0.5:0.5:1.5]))
lines!(ax3, q_range, R_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax3, q_range, R_cont, linewidth=6, color=:black, linestyle=:dash, label=L"$ $Continuum limit")
hlines!(ax3, [0.0], color=:grey, linewidth=6, linestyle=:dash)
axislegend(position=:lt)
ylims!(ax2, 0, 8)
ylims!(ax3, -0.5, 1.5)
xlims!(ax2, 0, 3)
xlims!(ax3, 0, 18)
fig
Just the code
An uncommented version of this example is given below. You can view the source code for this file here.
using StepwiseEQL
using CairoMakie
using EpithelialDynamics1D
using OrdinaryDiffEq
using Random
final_time = 75.0
domain_length = 30.0
midpoint = domain_length / 2
initial_condition = [LinRange(0, 5, 30); LinRange(25, 30, 30)] |> unique!
damping_constant = 1.0
resting_spring_length = 0.2
spring_constant = 1 / 5
k = spring_constant
force_law_parameters = (s=resting_spring_length, k=spring_constant)
force_law = (δ, p) -> p.k * (p.s - δ)
Δt = 1e-2
K = 15.0
β = 0.15
G = (δ, p) -> p.β * (one(δ) - inv(p.K * δ))
Gp = (β=β, K=K)
prob = CellProblem(;
final_time,
initial_condition,
damping_constant,
force_law,
force_law_parameters,
proliferation_law=G,
proliferation_period=Δt,
proliferation_law_parameters=Gp)
ens_prob = EnsembleProblem(prob)
Random.seed!(292919)
esol = solve(ens_prob, Tsit5(), EnsembleSerial(); trajectories=1000, saveat=0.1)
diffusion_basis = PolynomialBasis(-1, -3)
reaction_basis = PolynomialBasis(1, 5)
eql_sol = stepwise_selection(esol; diffusion_basis, reaction_basis,
threshold_tol=(q=0.25,), mesh_points=1000,
initial=:none, num_knots=200)
avg_sol = AveragedODESolution(esol, 500)
fig = Figure(fontsize=45, resolution=(1550, 961))
ax = Axis(fig[1, 1:2], xlabel=L"x", ylabel=L"q(x, t)",
width=1375, height=300,
title=L"(a):$ $ Density comparison", titlealign=:left,
xticks=(0:10:30, [L"%$s" for s in 0:10:30]),
yticks=(0:5:20, [L"%$s" for s in 0:5:20]))
t = (0, 1, 10, 25, 40, 75)
colors = (:black, :red, :blue, :green, :orange, :purple)
time_indices = [findlast(≤(τ), esol[1].t) for τ in t]
for (j, i) in enumerate(time_indices)
lines!(ax, eql_sol.pde.geometry.mesh_points, eql_sol.pde_sol.u[i], color=colors[j], linestyle=:dash, linewidth=8)
lines!(ax, avg_sol.u[i], avg_sol.q[i], color=colors[j], linewidth=4, label=L"%$(t[j])")
end
arrows!(ax, [15.0], [3.0], [0.0], [7.5], color=:black, linewidth=12, arrowsize=50)
text!(ax, [15.5], [5.7], text=L"t", color=:black, fontsize=47)
xlims!(ax, 0, 30)
ylims!(ax, 0, 23)
ax2 = Axis(fig[2, 1],xlabel=L"q",ylabel=L"D(q)",
width=600,height=300,
title=L"(b): $D(q)$ comparison",titlealign=:left,
xticks=(0:1:3, [L"%$s" for s in 0:1:3]),
yticks=(0:2:8, [L"%$s" for s in 0:2:8]))
q_range = LinRange(1 / 10, 20, 500)
D_cont_fnc = q -> (force_law_parameters.k / damping_constant) / q^2
R_cont_fnc = q -> β * q * (1 - q / K)
D_sol = diffusion_basis.(q_range, Ref(eql_sol.diffusion_theta), Ref(nothing))
R_sol = reaction_basis.(q_range, Ref(eql_sol.reaction_theta), Ref(nothing))
D_cont = D_cont_fnc.(q_range)
R_cont = R_cont_fnc.(q_range)
lines!(ax2, q_range, D_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax2, q_range, D_cont, linewidth=6, color=:black, linestyle=:dash, label=L"$ $Continuum limit")
axislegend(position=:rt)
ax3 = Axis(fig[2, 2], xlabel=L"q", ylabel=L"R(q)",
width=600, height=300,
title=L"(c): $R(q)$ comparison",titlealign=:left,
xticks=(0:3:18, [L"%$s" for s in 0:3:20]),
yticks=(-0.5:0.5:1.5, [L"%$s" for s in -0.5:0.5:1.5]))
lines!(ax3, q_range, R_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax3, q_range, R_cont, linewidth=6, color=:black, linestyle=:dash, label=L"$ $Continuum limit")
hlines!(ax3, [0.0], color=:grey, linewidth=6, linestyle=:dash)
axislegend(position=:lt)
ylims!(ax2, 0, 8)
ylims!(ax3, -0.5, 1.5)
xlims!(ax2, 0, 3)
xlims!(ax3, 0, 18)
figThis page was generated using Literate.jl.
