Case Studies: Case Study 4; Accurate continuum limit

This example shows how we obtained the results in the paper for the fourth case study, for the case that the continuum limit is accurate. Let us load in the packages we will need.

using StepwiseEQL
using CairoMakie
using EpithelialDynamics1D
using OrdinaryDiffEq
using Random

Simulating

Let us start by defining the cell problem. We use the force law $F(\ell) = k(s-\ell)$ and the proliferation law $G(\ell) = \beta[1 - 1/(K\ell)]$.

final_time = 100.0
domain_length = 30.0
midpoint = domain_length / 2
initial_condition = [LinRange(0, 5, 30);] |> unique!
damping_constant = 1.0
resting_spring_length = 0.2
spring_constant = 50.0
k = spring_constant
η = damping_constant
s = resting_spring_length
force_law_parameters = (s=resting_spring_length, k=spring_constant)
force_law = (δ, p) -> p.k * (p.s - δ)
Δt = 1e-2
K = 15.0
β = 0.15
G = (δ, p) -> p.β * (one(δ) - inv(p.K * δ))
Gp = (β=β, K=K)
prob = CellProblem(;
    final_time,
    initial_condition,
    damping_constant,
    force_law,
    force_law_parameters,
    proliferation_law=G,
    proliferation_period=Δt,
    proliferation_law_parameters=Gp,
    fix_right=false);

To now consider solving the problem, we note that we apply a sequential procedure to this problem, learning mechanisms one at a time. Thus, we provide a set of intervals for each mechanism. These are Tuples of the form (tmin, tmax, n), indicating that the mechanisms are to be learned over tmin ≤ t ≤ tmax, saving at n equally spaced time points between the endpoints.

ens_prob = EnsembleProblem(prob)
Random.seed!(292919)
interval_1 = (0.0, 0.1, 25)
interval_2 = (0.0, 5.0, 50)
interval_3 = (5.0, 10.0, 100)
interval_4 = (10, 50, 250)
t = [0, 5, 10, 25, 50, 100]
saveat = [t
             LinRange(interval_1...)
             LinRange(interval_2...)
             LinRange(interval_3...)
             LinRange(interval_4...)] |> unique! |> sort!
esol = solve(ens_prob, Tsit5(), EnsembleSerial(); trajectories=1000, saveat=saveat);

Equation learning

We now learn the equations. The basis sets we use are:

diffusion_basis = PolynomialBasis(-1, -3)
reaction_basis = PolynomialBasis(1, 5)
rhs_basis = PolynomialBasis(1, 5)
moving_boundary_basis = PolynomialBasis(-1, -3)
(::BasisSet{Tuple{StepwiseEQL.var"#52#54"{Int64}, StepwiseEQL.var"#52#54"{Int64}, StepwiseEQL.var"#52#54"{Int64}}}) (generic function with 3 methods)

To now learn the equations, we apply stepwise_selection to one mechanism one at a time, providing vectors of zeros to the fixed mechanisms so that they remain fixed at the zero function.

eql_sol = stepwise_selection(esol; diffusion_basis, reaction_basis,
    rhs_basis, moving_boundary_basis,
    reaction_theta=zeros(5), moving_boundary_theta=zeros(3), rhs_theta=zeros(5),
    mesh_points=100, num_knots=25, threshold_tol=(q=0.1,),
    initial=:none, time_range=(interval_1[1], interval_1[2]))
StepwiseEQL Solution.
    D(q) = θ₂ᵈ ϕ₂ᵈ(q)
┌──────┬───────────────────┬────────┐
│ Step │  θ₁ᵈ    θ₂ᵈ   θ₃ᵈ │   Loss │
├──────┼───────────────────┼────────┤
│    1 │ 0.00   0.00  0.00 │ -12.94 │
│    2 │ 0.00  49.60  0.00 │ -11.94 │
└──────┴───────────────────┴────────┘
eql_sol_2 = stepwise_selection(esol; diffusion_basis, reaction_basis,
    rhs_basis, moving_boundary_basis,
    diffusion_theta=eql_sol.diffusion_theta,
    reaction_theta=zeros(5), rhs_theta=zeros(5),
    mesh_points=100, threshold_tol=(dL=0.2,),
    num_knots=50, initial=:none,
    time_range=(interval_2[1], interval_2[2]))
StepwiseEQL Solution.
    E(q) = θ₂ᵉ ϕ₂ᵉ(q)
┌──────┬───────────────────┬───────┐
│ Step │  θ₁ᵉ    θ₂ᵉ   θ₃ᵉ │  Loss │
├──────┼───────────────────┼───────┤
│    1 │ 0.00   0.00  0.00 │ -6.89 │
│    2 │ 0.00  49.70  0.00 │ -5.89 │
└──────┴───────────────────┴───────┘
eql_sol_3 = stepwise_selection(esol; diffusion_basis, reaction_basis,
    rhs_basis, moving_boundary_basis,
    diffusion_theta=eql_sol.diffusion_theta,
    reaction_theta=zeros(5),
    moving_boundary_theta=eql_sol_2.moving_boundary_theta,
    mesh_points=100, num_knots=100,
    initial=:none, time_range=(interval_3[1], interval_3[2]))
StepwiseEQL Solution.
    H(q) = θ₁ʰ ϕ₁ʰ(q) + θ₄ʰ ϕ₄ʰ(q)
┌──────┬────────────────────────────────┬───────┐
│ Step │   θ₁ʰ   θ₂ʰ   θ₃ʰ    θ₄ʰ   θ₅ʰ │  Loss │
├──────┼────────────────────────────────┼───────┤
│    1 │  0.00  0.00  0.00   0.00  0.00 │ -3.58 │
│    2 │  0.00  0.00  0.00  -0.00  0.00 │ -7.70 │
│    3 │ -0.01  0.00  0.00  -0.00  0.00 │ -7.76 │
└──────┴────────────────────────────────┴───────┘
eql_sol_4 = stepwise_selection(esol; diffusion_basis, reaction_basis,
    rhs_basis, moving_boundary_basis,
    diffusion_theta=eql_sol.diffusion_theta,
    moving_boundary_theta=eql_sol_2.moving_boundary_theta,
    rhs_theta=eql_sol_3.rhs_theta,
    mesh_points=100, num_knots=50,
    initial=:none,
    time_range=(interval_4[1], interval_4[2]))
StepwiseEQL Solution.
    R(q) = θ₁ʳ ϕ₁ʳ(q) + θ₂ʳ ϕ₂ʳ(q)
┌──────┬───────────────────────────────┬────────┐
│ Step │  θ₁ʳ    θ₂ʳ   θ₃ʳ   θ₄ʳ   θ₅ʳ │   Loss │
├──────┼───────────────────────────────┼────────┤
│    1 │ 0.00   0.00  0.00  0.00  0.00 │  -4.23 │
│    2 │ 0.03   0.00  0.00  0.00  0.00 │  -4.52 │
│    3 │ 0.15  -0.01  0.00  0.00  0.00 │ -13.75 │
└──────┴───────────────────────────────┴────────┘

Plotting

We now plot our results.

fig = Figure(fontsize=81, resolution=(3250, 2070))
ax_pde = Axis(fig[1, 1], xlabel=L"x", ylabel=L"q(x, t)",
    title=L"(a):$ $ PDE comparison", titlealign=:left,
    width=1200, height=400,
    xticks=(0:5:40, [L"%$s" for s in 0:5:40]),
    yticks=(0:5:15, [L"%$s" for s in 0:5:15])
)
xlims!(ax_pde, 0, 35)
ylims!(ax_pde, 0, 16)
ax_leading_edge = Axis(fig[1, 2], xlabel=L"t", ylabel=L"L(t)",
    title=L"(b):$ $ Leading edge comparison", titlealign=:left,
    width=1200, height=400,
    xticks=(0:20:100, [L"%$s" for s in 0:20:100]),
    yticks=(0:10:40, [L"%$s" for s in 0:10:40])
)
xlims!(ax_leading_edge, 0, 100)
ylims!(ax_leading_edge, 0, 40)
ax_dq = Axis(fig[2, 1], xlabel=L"q", ylabel=L"D(q)",
    title=L"(c): $D(q)$ comparison", titlealign=:left,
    width=1200, height=400,
    xticks=(5:5:15, [L"%$s" for s in 5:5:15]),
    yticks=(0:2, [L"%$s" for s in 0:2])
)
xlims!(ax_dq, 5, 15)
ylims!(ax_dq, 0, 2)
ax_rq = Axis(fig[2, 2], xlabel=L"q", ylabel=L"R(q)",
    title=L"(d): $R(q)$ comparison", titlealign=:left,
    width=1200, height=400,
    xticks=(5:5:15, [L"%$s" for s in 5:5:15]),
    yticks=(0:0.25:0.75, [L"%$s" for s in 0:0.25:0.75])
)
xlims!(ax_rq, 5, 15)
ylims!(ax_rq, 0, 0.75)
ax_hq = Axis(fig[3, 1], xlabel=L"q", ylabel=L"H(q)",
    title=L"(e): $H(q)$ comparison", titlealign=:left,
    width=1200, height=400,
    xticks=(5:5:15, [L"%$s" for s in 5:5:15]),
        yticks=(-12:4:0, [L"%$s" for s in -12:4:0])
)
xlims!(ax_hq, 5, 15)
ylims!(ax_hq, -12, 0)
ax_eq = Axis(fig[3, 2], xlabel=L"q", ylabel=L"E(q)",
    title=L"(f): $E(q)$ comparison", titlealign=:left,
    width=1200, height=400,
    xticks=(5:5:15, [L"%$s" for s in 5:5:15]),
        yticks=(0:0.5:2, [L"%$s" for s in 0:0.5:2])
)
xlims!(ax_eq, 5, 15)
ylims!(ax_eq, 0, 2)
time_indices = [findlast(≤(τ), esol[1].t) for τ in t]
colors = (:black, :red, :blue, :green, :orange, :purple, :brown)
pde_ξ = eql_sol_4.pde.geometry.mesh_points
pde_L = eql_sol_4.pde_sol[end, :]
pde_q = eql_sol_4.pde_sol[begin:(end-1), :]
cell_q = eql_sol_4.model.cell_sol.q
cell_r = eql_sol_4.model.cell_sol.u
cell_L = last.(eql_sol_4.model.cell_sol.u)

q_range = LinRange(5, 15, 100)
bc_q_range = LinRange(5, 5.8, 100)
D_cont_fnc = q -> (k / η) / q^2
R_cont_fnc = q -> β * q * (1 - q / K)
H_cont_fnc = q -> 2q^2 * (1 - q * s)
E_cont_fnc = D_cont_fnc
D_cont = D_cont_fnc.(q_range)
R_cont = R_cont_fnc.(q_range)
H_cont = H_cont_fnc.(q_range)
E_cont = E_cont_fnc.(q_range)
D_sol = diffusion_basis.(q_range, Ref(eql_sol.diffusion_theta), Ref(nothing))
R_sol = reaction_basis.(q_range, Ref(eql_sol_4.reaction_theta), Ref(nothing))
H_sol = rhs_basis.(q_range, Ref(eql_sol_3.rhs_theta), Ref(nothing))
E_sol = moving_boundary_basis.(q_range, Ref(eql_sol_2.moving_boundary_theta), Ref(nothing))

for (j, i) in enumerate(time_indices)
    lines!(ax_pde, pde_ξ * pde_L[i], pde_q[:, i], color=colors[j], linestyle=:dash, linewidth=8)
    lines!(ax_pde, cell_r[i], cell_q[i], color=colors[j], linewidth=4, label=L"%$(t[j])")
end
arrows!(ax_pde, [13.0], [3.0], [13.0], [0.0], color=:black, linewidth=12, arrowsize=57)
text!(ax_pde, [22.0], [3.5], text=L"t", fontsize=81)

lines!(ax_leading_edge, esol[1].t, pde_L, color=:red, linestyle=:dash, linewidth=5, label=L"$ $Learned")
lines!(ax_leading_edge, esol[1].t, cell_L, color=:black, linewidth=3, label=L"$ $Discrete")
axislegend(ax_leading_edge, position=:rb)

lines!(ax_dq, q_range, D_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_dq, q_range, D_cont, linewidth=6, color=:black, linestyle=:dash, label=L"$ $Continuum limit")
axislegend(ax_dq, position=:rt)

lines!(ax_rq, q_range, R_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_rq, q_range, R_cont, linewidth=6, color=:black, linestyle=:dash, label=L"$ $Continuum limit")
axislegend(ax_rq, position=:lb)

lines!(ax_hq, q_range, H_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_hq, q_range, H_cont, linewidth=6, color=:black, linestyle=:dash, label=L"$ $Continuum limit")
axislegend(ax_hq, position=:rt)

lines!(ax_eq, q_range, E_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_eq, q_range, E_cont, linewidth=6, color=:black, linestyle=:dash, label=L"$ $Continuum limit")
axislegend(ax_eq, position=:rt)
fig

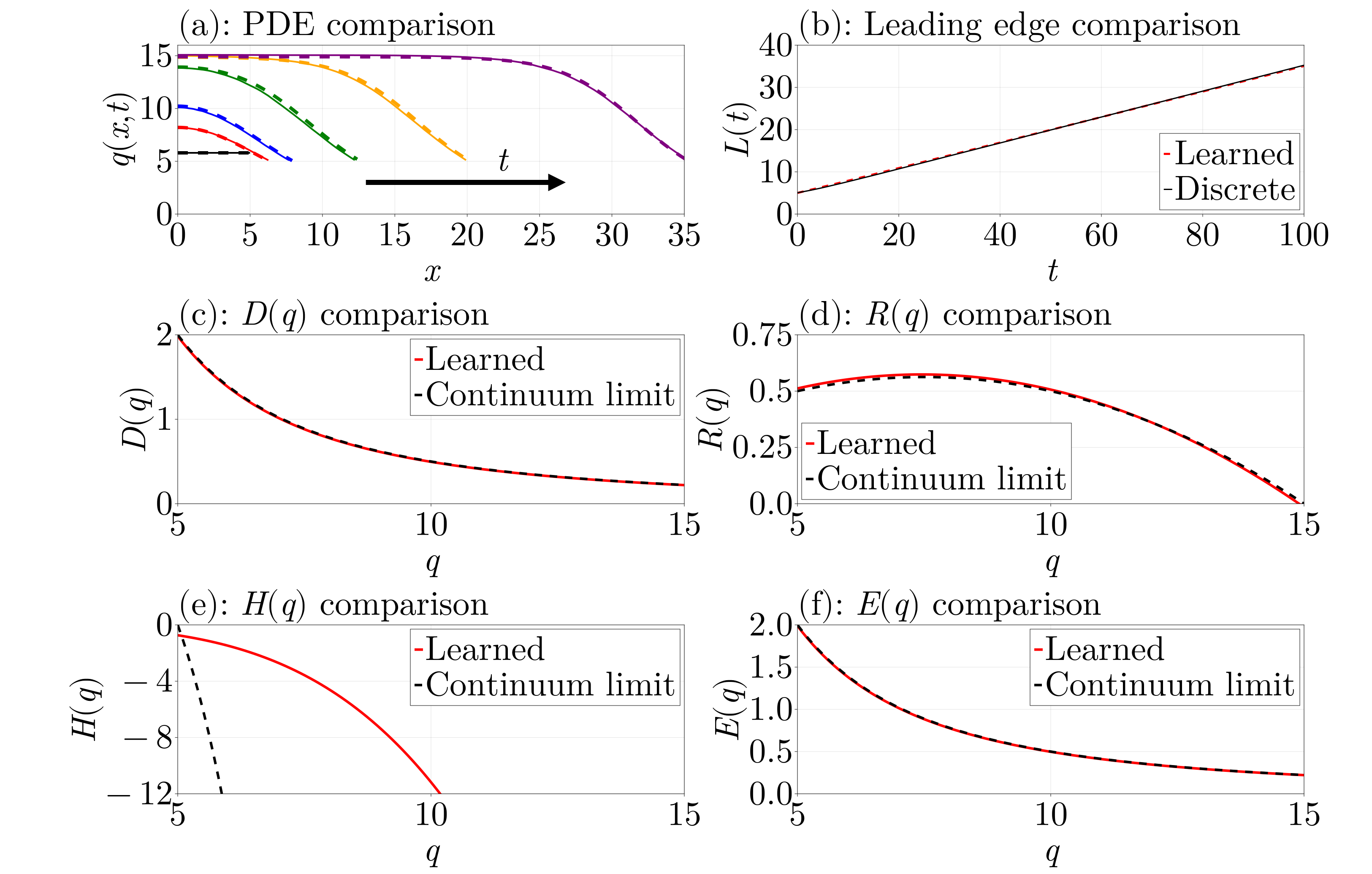

Figure 10 from the paper

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using StepwiseEQL
using CairoMakie
using EpithelialDynamics1D
using OrdinaryDiffEq
using Random

final_time = 100.0
domain_length = 30.0
midpoint = domain_length / 2
initial_condition = [LinRange(0, 5, 30);] |> unique!
damping_constant = 1.0
resting_spring_length = 0.2
spring_constant = 50.0
k = spring_constant
η = damping_constant
s = resting_spring_length
force_law_parameters = (s=resting_spring_length, k=spring_constant)
force_law = (δ, p) -> p.k * (p.s - δ)
Δt = 1e-2
K = 15.0
β = 0.15
G = (δ, p) -> p.β * (one(δ) - inv(p.K * δ))
Gp = (β=β, K=K)
prob = CellProblem(;
    final_time,
    initial_condition,
    damping_constant,
    force_law,
    force_law_parameters,
    proliferation_law=G,
    proliferation_period=Δt,
    proliferation_law_parameters=Gp,
    fix_right=false)

ens_prob = EnsembleProblem(prob)
Random.seed!(292919)
interval_1 = (0.0, 0.1, 25)
interval_2 = (0.0, 5.0, 50)
interval_3 = (5.0, 10.0, 100)
interval_4 = (10, 50, 250)
t = [0, 5, 10, 25, 50, 100]
saveat = [t
             LinRange(interval_1...)
             LinRange(interval_2...)
             LinRange(interval_3...)
             LinRange(interval_4...)] |> unique! |> sort!
esol = solve(ens_prob, Tsit5(), EnsembleSerial(); trajectories=1000, saveat=saveat)

diffusion_basis = PolynomialBasis(-1, -3)
reaction_basis = PolynomialBasis(1, 5)
rhs_basis = PolynomialBasis(1, 5)
moving_boundary_basis = PolynomialBasis(-1, -3)

eql_sol = stepwise_selection(esol; diffusion_basis, reaction_basis,
    rhs_basis, moving_boundary_basis,
    reaction_theta=zeros(5), moving_boundary_theta=zeros(3), rhs_theta=zeros(5),
    mesh_points=100, num_knots=25, threshold_tol=(q=0.1,),
    initial=:none, time_range=(interval_1[1], interval_1[2]))

eql_sol_2 = stepwise_selection(esol; diffusion_basis, reaction_basis,
    rhs_basis, moving_boundary_basis,
    diffusion_theta=eql_sol.diffusion_theta,
    reaction_theta=zeros(5), rhs_theta=zeros(5),
    mesh_points=100, threshold_tol=(dL=0.2,),
    num_knots=50, initial=:none,
    time_range=(interval_2[1], interval_2[2]))

eql_sol_3 = stepwise_selection(esol; diffusion_basis, reaction_basis,
    rhs_basis, moving_boundary_basis,
    diffusion_theta=eql_sol.diffusion_theta,
    reaction_theta=zeros(5),
    moving_boundary_theta=eql_sol_2.moving_boundary_theta,
    mesh_points=100, num_knots=100,
    initial=:none, time_range=(interval_3[1], interval_3[2]))

eql_sol_4 = stepwise_selection(esol; diffusion_basis, reaction_basis,
    rhs_basis, moving_boundary_basis,
    diffusion_theta=eql_sol.diffusion_theta,
    moving_boundary_theta=eql_sol_2.moving_boundary_theta,
    rhs_theta=eql_sol_3.rhs_theta,
    mesh_points=100, num_knots=50,
    initial=:none,
    time_range=(interval_4[1], interval_4[2]))

fig = Figure(fontsize=81, resolution=(3250, 2070))
ax_pde = Axis(fig[1, 1], xlabel=L"x", ylabel=L"q(x, t)",
    title=L"(a):$ $ PDE comparison", titlealign=:left,
    width=1200, height=400,
    xticks=(0:5:40, [L"%$s" for s in 0:5:40]),
    yticks=(0:5:15, [L"%$s" for s in 0:5:15])
)
xlims!(ax_pde, 0, 35)
ylims!(ax_pde, 0, 16)
ax_leading_edge = Axis(fig[1, 2], xlabel=L"t", ylabel=L"L(t)",
    title=L"(b):$ $ Leading edge comparison", titlealign=:left,
    width=1200, height=400,
    xticks=(0:20:100, [L"%$s" for s in 0:20:100]),
    yticks=(0:10:40, [L"%$s" for s in 0:10:40])
)
xlims!(ax_leading_edge, 0, 100)
ylims!(ax_leading_edge, 0, 40)
ax_dq = Axis(fig[2, 1], xlabel=L"q", ylabel=L"D(q)",
    title=L"(c): $D(q)$ comparison", titlealign=:left,
    width=1200, height=400,
    xticks=(5:5:15, [L"%$s" for s in 5:5:15]),
    yticks=(0:2, [L"%$s" for s in 0:2])
)
xlims!(ax_dq, 5, 15)
ylims!(ax_dq, 0, 2)
ax_rq = Axis(fig[2, 2], xlabel=L"q", ylabel=L"R(q)",
    title=L"(d): $R(q)$ comparison", titlealign=:left,
    width=1200, height=400,
    xticks=(5:5:15, [L"%$s" for s in 5:5:15]),
    yticks=(0:0.25:0.75, [L"%$s" for s in 0:0.25:0.75])
)
xlims!(ax_rq, 5, 15)
ylims!(ax_rq, 0, 0.75)
ax_hq = Axis(fig[3, 1], xlabel=L"q", ylabel=L"H(q)",
    title=L"(e): $H(q)$ comparison", titlealign=:left,
    width=1200, height=400,
    xticks=(5:5:15, [L"%$s" for s in 5:5:15]),
        yticks=(-12:4:0, [L"%$s" for s in -12:4:0])
)
xlims!(ax_hq, 5, 15)
ylims!(ax_hq, -12, 0)
ax_eq = Axis(fig[3, 2], xlabel=L"q", ylabel=L"E(q)",
    title=L"(f): $E(q)$ comparison", titlealign=:left,
    width=1200, height=400,
    xticks=(5:5:15, [L"%$s" for s in 5:5:15]),
        yticks=(0:0.5:2, [L"%$s" for s in 0:0.5:2])
)
xlims!(ax_eq, 5, 15)
ylims!(ax_eq, 0, 2)
time_indices = [findlast(≤(τ), esol[1].t) for τ in t]
colors = (:black, :red, :blue, :green, :orange, :purple, :brown)
pde_ξ = eql_sol_4.pde.geometry.mesh_points
pde_L = eql_sol_4.pde_sol[end, :]
pde_q = eql_sol_4.pde_sol[begin:(end-1), :]
cell_q = eql_sol_4.model.cell_sol.q
cell_r = eql_sol_4.model.cell_sol.u
cell_L = last.(eql_sol_4.model.cell_sol.u)

q_range = LinRange(5, 15, 100)
bc_q_range = LinRange(5, 5.8, 100)
D_cont_fnc = q -> (k / η) / q^2
R_cont_fnc = q -> β * q * (1 - q / K)
H_cont_fnc = q -> 2q^2 * (1 - q * s)
E_cont_fnc = D_cont_fnc
D_cont = D_cont_fnc.(q_range)
R_cont = R_cont_fnc.(q_range)
H_cont = H_cont_fnc.(q_range)
E_cont = E_cont_fnc.(q_range)
D_sol = diffusion_basis.(q_range, Ref(eql_sol.diffusion_theta), Ref(nothing))
R_sol = reaction_basis.(q_range, Ref(eql_sol_4.reaction_theta), Ref(nothing))
H_sol = rhs_basis.(q_range, Ref(eql_sol_3.rhs_theta), Ref(nothing))
E_sol = moving_boundary_basis.(q_range, Ref(eql_sol_2.moving_boundary_theta), Ref(nothing))

for (j, i) in enumerate(time_indices)
    lines!(ax_pde, pde_ξ * pde_L[i], pde_q[:, i], color=colors[j], linestyle=:dash, linewidth=8)
    lines!(ax_pde, cell_r[i], cell_q[i], color=colors[j], linewidth=4, label=L"%$(t[j])")
end
arrows!(ax_pde, [13.0], [3.0], [13.0], [0.0], color=:black, linewidth=12, arrowsize=57)
text!(ax_pde, [22.0], [3.5], text=L"t", fontsize=81)

lines!(ax_leading_edge, esol[1].t, pde_L, color=:red, linestyle=:dash, linewidth=5, label=L"$ $Learned")
lines!(ax_leading_edge, esol[1].t, cell_L, color=:black, linewidth=3, label=L"$ $Discrete")
axislegend(ax_leading_edge, position=:rb)

lines!(ax_dq, q_range, D_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_dq, q_range, D_cont, linewidth=6, color=:black, linestyle=:dash, label=L"$ $Continuum limit")
axislegend(ax_dq, position=:rt)

lines!(ax_rq, q_range, R_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_rq, q_range, R_cont, linewidth=6, color=:black, linestyle=:dash, label=L"$ $Continuum limit")
axislegend(ax_rq, position=:lb)

lines!(ax_hq, q_range, H_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_hq, q_range, H_cont, linewidth=6, color=:black, linestyle=:dash, label=L"$ $Continuum limit")
axislegend(ax_hq, position=:rt)

lines!(ax_eq, q_range, E_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_eq, q_range, E_cont, linewidth=6, color=:black, linestyle=:dash, label=L"$ $Continuum limit")
axislegend(ax_eq, position=:rt)
fig

This page was generated using Literate.jl.
