This example is also available as a Jupyter notebook: linear_diffusion.ipynb
Linear Diffusion
In this section we show how we obtained the results in the supplementary material where we used the force law $F(\ell_i) = k(a/\ell_i - s)$ so that we obtain linear diffusion $D(q) = k$. The parameter $a$ is set to $1$ and is only used so that $a/\ell_i$ has units of length. To start, let us load in the packages we will need.
using StepwiseEQL
using CairoMakie
using EpithelialDynamics1D
using OrdinaryDiffEq
using LinearSolve
using Random
using DataInterpolations
using Optimization
using OptimizationNLopt
using PreallocationTools
using SpecialFunctions
using SetfieldFor the initial condition, we define it according to a Gaussian initial density. In particular, we let the initial density be given by
\[q_0(x) = \frac{A}{\sqrt{2\mathrm{\pi}\sigma}}\exp\left\{-\frac{1}{2}\left(\frac{x-L_0/2}{\sigma}\right)^2\right\},\]
where $A = N(0)/\operatorname{erf}[L_0\sqrt{2}/4\sigma]$, $L_0=10$, $\sigma^2 = 3$, $N(0) = 40$, and $\operatorname{erf}$ is the error function. To obtain the initial condition from this, we solve
\[(x_2(0), \ldots, x_{40}(0)) = \operatorname*{argmin}_{\substack{x_2(0), \ldots, x_{40}(0),\\ 0<x_2(0)<\cdots<x_{40}(0)<L_0}}\sum_{i=1}^{41}\left(q_0\left(x_i(0)\right) - q_i\right)^2,\]
where $q_i$ is the density using StepwiseEQL.cell_density and noting that we also have $x_1(0)=0$ and $x_{41}(0) = L_0$. The code that follows obtains this initial condition, where we also impose symmetry of the densities about $x=L_0/2$.
function initial_density(x, p)
(; σ, L₀, N₀) = p
return N₀ * exp(-(2x - L₀)^2 / (8σ^2)) / (erf(L₀ * sqrt(2) / (4σ)) * sqrt(2π * σ^2))
end
function impose_symmetry!(ξ, x)
_ξ = get_tmp(ξ, x)
for i in eachindex(x)
_ξ[i] = x[i]
if i ≠ firstindex(x)
_ξ[lastindex(x)+i-1] = L₀ - x[end-i+1]
end
end
return _ξ
end
function objective_function(x, p)
ℓ = zero(eltype(x))
ξ = impose_symmetry!(p.ξ, x)
for i in eachindex(ξ)
qᵢ = initial_density(ξ[i], p)
q̂ᵢ = StepwiseEQL.cell_density(ξ, i)
ℓ += (qᵢ - q̂ᵢ)^2
end
return ℓ
end
σ, L₀, N₀ = sqrt(3.0), 10.0, 40
p = (σ=σ, L₀=L₀, N₀=N₀, ξ=DiffCache(zeros(N₀ + 1)))
lb = fill(0.0, 1 + N₀ ÷ 2)
lb[end] = L₀ / 2
ub = fill(L₀ / 2, 1 + N₀ ÷ 2)
ub[begin] = 0.0
x = collect(LinRange(0, L₀ / 2, 1 + N₀ ÷ 2))
optf = OptimizationFunction(objective_function, Optimization.AutoForwardDiff())
optp = OptimizationProblem(optf, x, p, lb=lb, ub=ub)
optsol = solve(optp, NLopt.LD_LBFGS())
initial_condition = impose_symmetry!(zeros(N₀ + 1), optsol.u)41-element Vector{Float64}:
0.0
1.5787033523246374
2.1340980079211676
2.4973813897938477
2.774109159733593
⋮
7.502618610206152
7.8659019920788324
8.421296647675362
10.0Now that we have our initial condition, let us define and solve the CellProblem.
final_time = 100.0
η = 1.0
s = 1.0
k = 20.0
Fp = (s=s, k=k)
F = (δ, p) -> k * (inv(δ) - p.s)
prob = CellProblem(;
final_time,
initial_condition,
damping_constant=η,
force_law=F,
force_law_parameters=Fp,
fix_right=false)
sol = solve(prob, Tsit5(), saveat=0.01)retcode: Success
Interpolation: 1st order linear
t: 10001-element Vector{Float64}:
0.0
0.01
0.02
0.03
0.04
⋮
99.97
99.98
99.99
100.0
u: 10001-element Vector{Vector{Float64}}:
[0.0, 1.5787033523246374, 2.1340980079211676, 2.4973813897938477, 2.774109159733593, 3.003581585705231, 3.2020192021768916, 3.3793419906978626, 3.5408616392248677, 3.690628759412924 … 6.309371240587076, 6.459138360775132, 6.620658009302137, 6.797980797823108, 6.996418414294769, 7.225890840266407, 7.502618610206152, 7.8659019920788324, 8.421296647675362, 10.0]
[0.0, 1.3651358188376719, 1.9490241066453966, 2.3335217503330896, 2.628603228897222, 2.872935877679148, 3.0845791597576984, 3.273459199755298, 3.4456439133940746, 3.605134305410975 … 6.394865542781103, 6.554355715417048, 6.726539859163963, 6.915418334715366, 7.127056987526195, 7.371374413948285, 7.666397356929318, 8.050605150886081, 8.632191479495392, 9.939560182054365]
[0.0, 1.1840474987409613, 1.7795132613380433, 2.1816362842952723, 2.492391164439249, 2.7503408469420108, 2.97400280842732, 3.173693413464358, 3.3557684965354837, 3.5244401077672594 … 6.4755527410500155, 6.644218165908885, 6.826280909740453, 7.025945618444571, 7.249549390807395, 7.507355278814261, 7.817701624600291, 8.218377239770449, 8.806272295500522, 9.906800873191289]
[0.0, 1.0300281346643718, 1.6257791425985335, 2.0408730534092263, 2.364912066826393, 2.6349890099702487, 2.8695932842690204, 3.079219614973615, 3.27040341683455, 3.4475100682711575 … 6.55249014346213, 6.729542271829751, 6.920656965227514, 7.130172496123379, 7.3645659670052686, 7.63418932816289, 7.957114662503464, 8.368907375209199, 8.951462837231963, 9.902936169260467]
[0.0, 0.9001575656443275, 1.4870813302846435, 1.9106923881046163, 2.245616044270653, 2.52633628533944, 2.77089350730545, 2.989795073039422, 3.189684227446955, 3.375034311134568 … 6.624902810480961, 6.810147120871633, 7.009874432924693, 7.228510350061106, 7.472594830350273, 7.752391836833429, 8.085295599306898, 8.503778769509019, 9.074970235114737, 9.925967827782154]
⋮
[0.0, 0.9776532909898301, 1.957061276052828, 2.9330646517968657, 3.9151759773409602, 4.889121915498164, 5.874881043384528, 6.847110965322164, 7.834635230790262, 8.807768983533764 … 30.475470644510676, 31.4678233869865, 32.460989535491585, 33.45498199948898, 34.44981072293689, 35.44548547030536, 36.44201413098871, 37.43940367980373, 38.43765958240537, 39.43678610086499]
[0.0, 0.9780504282382008, 1.956176231012628, 2.934445785886711, 3.9129074980345258, 4.891970463090923, 5.870928766785619, 6.851348685066234, 7.830771400950265, 8.811414731230666 … 30.47563371973013, 31.467988403454353, 32.46115692769191, 33.455151103155735, 34.44998152378922, 35.44565756295844, 36.44218733498954, 37.43957767960069, 38.43783413541829, 39.43696092246783]
[0.0, 0.9785110439305068, 1.9550944332251787, 2.9360266992646356, 3.9101234720238196, 4.89522664023304, 5.86613221114375, 6.856364311122323, 7.826232925470904, 8.815838929459241 … 30.475796795216, 31.468153337729248, 32.46132428606158, 33.45532014314944, 34.45015227775932, 35.44582959813444, 36.44236048705599, 37.43975162385969, 38.438008634499745, 39.437135689279]
[0.0, 0.9782634989596738, 1.9556631522047718, 2.93514656520586, 3.911571879463237, 4.8933826951442665, 5.868702927075771, 6.853689184576215, 7.828853090332832, 8.813641611536875 … 30.475959332538498, 31.46831851389349, 32.46149141687953, 33.45548923450289, 34.450322917104785, 35.446001615383665, 36.4425335645067, 37.4399255251732, 38.43818307340694, 39.4373104032046]Now we look at the data and compare it to the continuum limit.
pde_continuum = continuum_limit(prob, 2500)
pde_sol = solve(pde_continuum, TRBDF2(linsolve=KLUFactorization()), saveat=sol.t)
pde_ξ = pde_continuum.geometry.mesh_points
pde_L = pde_sol[end, :]
pde_q = pde_sol[begin:(end-1), :]
cell_q = node_densities.(sol.u)
cell_r = sol.u
cell_L = sol[end, :]
t = (0.0, 1 / 10, 2.0, 10.0, 50.0, 75.0, 100.0)
colors = (:black, :red, :blue, :green, :orange, :purple, :brown)
t_idx = [findlast(≤(τ), sol.t) for τ in t]

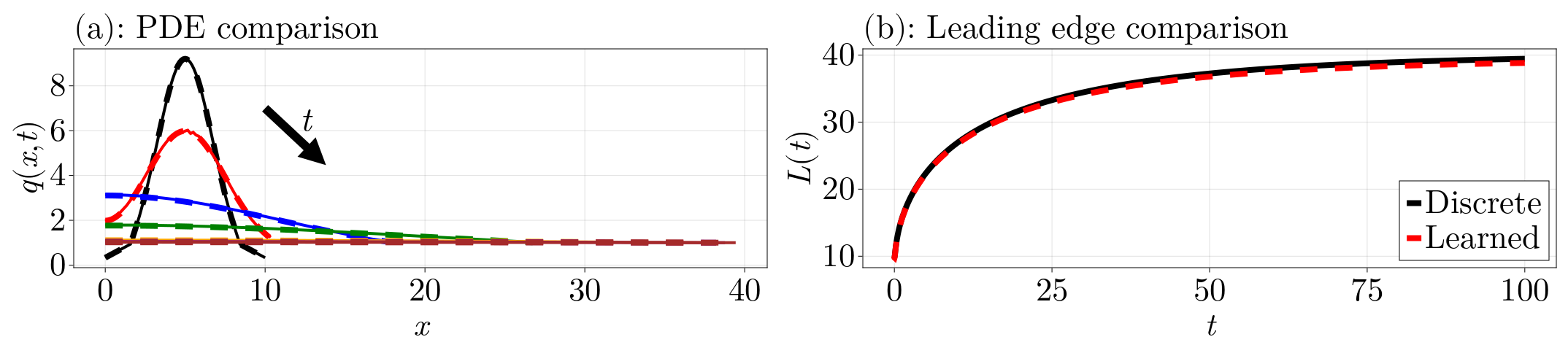

fig = Figure(fontsize=45)
ax1 = Axis(fig[1, 1], xlabel=L"x", ylabel=L"q(x,t)", width=950, height=300,
title=L"(a):$ $ PDE comparison", titlealign=:left,
xticks=(0:10:40, [L"%$s" for s in 0:10:40]), yticks=(0:2:10, [L"%$s" for s in 0:2:10]))
for (j, i) in enumerate(t_idx)
lines!(ax1, pde_ξ * pde_L[i], pde_q[:, i], color=colors[j], linestyle=:dash, linewidth=8)
lines!(ax1, cell_r[i], cell_q[i], color=colors[j], linewidth=4, label=L"%$(t[j])")
end
arrows!(ax1, [10.0], [7.0], [3.0], [-2.0], color=:black, linewidth=12, arrowsize=50)
text!(ax1, [12.2], [5.7], text=L"t", color=:black, fontsize=47)
ax2 = Axis(fig[1, 2], xlabel=L"t", ylabel=L"L(t)", width=950, height=300,
title=L"(b):$ $ Leading edge comparison", titlealign=:left,
xticks=(0:25:100, [L"%$s" for s in 0:25:100]), yticks=(0:10:40, [L"%$s" for s in 0:10:40]))
lines!(ax2, sol.t, cell_L, color=:black, linewidth=8, label=L"$ $Discrete")
lines!(ax2, pde_sol.t, pde_L, color=:red, linestyle=:dash, linewidth=8, label=L"$ $Learned")
axislegend(position=:rb)
resize_to_layout!(fig)
fig
Let us now apply our equation learning procedure to this problem.
diffusion_basis = PolynomialBasis(-2, 2)
rhs_basis = PolynomialBasis(1, 5)
moving_boundary_basis = PolynomialBasis(-2, 2)
eql_sol = stepwise_selection(sol;
diffusion_basis, rhs_basis, moving_boundary_basis,
mesh_points=100, initial=:none,
threshold_tol=(q=0.3, dL=0.2))StepwiseEQL Solution.
D(q) = θ₃ᵈ ϕ₃ᵈ(q)
H(q) = θ₂ʰ ϕ₂ʰ(q) + θ₅ʰ ϕ₅ʰ(q)
E(q) = θ₃ᵉ ϕ₃ᵉ(q)
┌──────┬───────────────────────────────┬───────────────────────────────┬───────────────────────────────┬────────┐
│ Step │ θ₁ᵈ θ₂ᵈ θ₃ᵈ θ₄ᵈ θ₅ᵈ │ θ₁ʰ θ₂ʰ θ₃ʰ θ₄ʰ θ₅ʰ │ θ₁ᵉ θ₂ᵉ θ₃ᵉ θ₄ᵉ θ₅ᵉ │ Loss │
├──────┼───────────────────────────────┼───────────────────────────────┼───────────────────────────────┼────────┤
│ 1 │ 0.00 0.00 0.00 0.00 0.00 │ 0.00 0.00 0.00 0.00 0.00 │ 0.00 0.00 0.00 0.00 0.00 │ 0.76 │
│ 2 │ 0.00 0.00 19.18 0.00 0.00 │ 0.00 0.00 0.00 0.00 0.00 │ 0.00 0.00 0.00 0.00 0.00 │ 1.14 │
│ 3 │ 0.00 0.00 19.18 0.00 0.00 │ 0.00 0.00 0.00 0.00 -0.02 │ 0.00 0.00 0.00 0.00 0.00 │ 0.98 │
│ 4 │ 0.00 0.00 19.18 0.00 0.00 │ 0.00 0.00 0.00 0.00 -0.02 │ 0.00 0.00 20.05 0.00 0.00 │ -5.05 │
│ 5 │ 0.00 0.00 19.18 0.00 0.00 │ 0.00 0.42 0.00 0.00 -0.42 │ 0.00 0.00 20.05 0.00 0.00 │ -10.73 │
└──────┴───────────────────────────────┴───────────────────────────────┴───────────────────────────────┴────────┘Now we look at the results.
function plot_results(eql_sol, sol, k, s, η, diffusion_basis, rhs_basis, moving_boundary_basis, conserve_mass=false)
t = (0.0, 1 / 10, 2.0, 10.0, 50.0, 75.0, 100.0)
prob = sol.prob.p
prob = @set prob.final_time = 100.0
sol = solve(prob, Tsit5(), saveat=[collect(t); LinRange(0, 100, 2500)] |> sort |> unique)
time_indices = [findlast(≤(τ), sol.t) for τ in t]
colors = (:black, :red, :blue, :green, :orange, :purple, :brown)
pde = eql_sol.pde
pde = @set pde.final_time = 100.0 # need to resolve so that we plot over the complete time interval
pde_sol = solve(pde, TRBDF2(linsolve=KLUFactorization()), saveat=sol.t)
pde_continuum = deepcopy(pde)
pde_continuum.diffusion_parameters.θ .= [0, 0.0, k / η, 0.0, 0]
pde_continuum.boundary_conditions.rhs.p.θ .= [0, 2.0, -2.0, 0, 0]
pde_continuum.boundary_conditions.moving_boundary.p.θ .= [0, 0, k / η, 0, 0]
pde_ξ = pde_continuum.geometry.mesh_points
pde_L = pde_sol[end, :]
pde_q = pde_sol[begin:(end-1), :]
cell_q = node_densities.(sol.u)
cell_r = sol.u
cell_L = sol[end, :]
q_range = LinRange(0.3, 9.3, 250)
fig = Figure(fontsize=45, resolution=(2220, 961))
top_grid = fig[1, 1] = GridLayout(1, 2)
bottom_grid = fig[2, 1] = GridLayout(1, 3)
ax_pde = Axis(top_grid[1, 1], xlabel=L"x", ylabel=L"q(x,t)", width=950, height=300,
title=L"(a):$ $ PDE comparison", titlealign=:left,
xticks=(0:10:40, [L"%$s" for s in 0:10:40]), yticks=(0:2:10, [L"%$s" for s in 0:2:10]))
for (j, i) in enumerate(time_indices)
lines!(ax_pde, pde_ξ * pde_L[i], pde_q[:, i], color=colors[j], linestyle=:dash, linewidth=8)
lines!(ax_pde, cell_r[i], cell_q[i], color=colors[j], linewidth=4, label=L"%$(t[j])")
end
arrows!(ax_pde, [10.0], [7.0], [3.0], [-2.0], color=:black, linewidth=12, arrowsize=50)
text!(ax_pde, [12.2], [5.7], text=L"t", color=:black, fontsize=47)
ax_leading_edge = Axis(top_grid[1, 2], xlabel=L"t", ylabel=L"L(t)", width=950, height=300,
title=L"(b):$ $ Leading edge comparison", titlealign=:left,
xticks=(0:25:100, [L"%$s" for s in 0:25:100]), yticks=(0:10:40, [L"%$s" for s in 0:10:40]))
lines!(ax_leading_edge, pde_sol.t, pde_L, color=:red, linestyle=:dash, linewidth=5, label=L"$ $Learned")
lines!(ax_leading_edge, sol.t, cell_L, color=:black, linewidth=3, label=L"$ $Discrete")
axislegend(position=:rb)
ax_diffusion = Axis(bottom_grid[1, 1],
xlabel=L"q", ylabel=L"D(q)", width=600, height=300,
title=L"(c): $D(q)$ comparison", titlealign=:left,
xticks=(0:2:10, [L"%$s" for s in 0:2:10]), yticks=(0:5:25, [L"%$s" for s in 0:5:25]))
D_cont_fnc = q -> k / η
D_cont = D_cont_fnc.(q_range)
local D_sol
try
D_sol = diffusion_basis.(q_range, Ref(eql_sol.diffusion_theta), Ref(nothing))
catch e
print(e)
D_sol = D_cont
end
lines!(ax_diffusion, q_range, D_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_diffusion, q_range, D_cont, linewidth=6, color=:black, linestyle=:dashdot, label=L"$ $Continuum limit")
axislegend(position=:rt)
xlims!(ax_diffusion, 0, 10)
ylims!(ax_diffusion, 15, 25)
ax_rhs = Axis(bottom_grid[1, 2],
xlabel=L"q", ylabel=L"H(q)", width=600, height=300,
title=L"(d): $H(q)$ comparison", titlealign=:left,
xticks=(0:2:10, [L"%$s" for s in 0:2:10]), yticks=(-20:5:5, [L"%$s" for s in -20:5:5]))
RHS_cont_fnc = q -> 2q^2 * (1 - s * q)
RHS_cont = RHS_cont_fnc.(q_range)
local RHS_sol
try
RHS_sol = rhs_basis.(q_range, Ref(eql_sol.rhs_theta), Ref(nothing))
catch e
print(e)
RHS_sol = RHS_cont
end
lines!(ax_rhs, q_range, RHS_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_rhs, q_range, RHS_cont, linewidth=6, color=:black, linestyle=:dashdot, label=L"$ $Continuum limit")
axislegend(position=:rt)
xlims!(ax_rhs, 0, 10)
ylims!(ax_rhs, -20, 5)
ax_moving_boundary = Axis(bottom_grid[1, 3],
xlabel=L"q", ylabel=L"E(q)", width=600, height=300,
title=L"(e): $E(q)$ comparison", titlealign=:left,
xticks=(0:2:10, [L"%$s" for s in 0:2:10]), yticks=(0:5:25, [L"%$s" for s in 0:5:25]))
MB_cont_fnc = q -> k / η
MB_cont = MB_cont_fnc.(q_range)
local MB_sol
try
if !conserve_mass
MB_sol = moving_boundary_basis.(q_range, Ref(eql_sol.moving_boundary_theta), Ref(nothing))
else
MB_sol = moving_boundary_basis.(q_range, Ref(eql_sol.diffusion_theta), Ref(nothing))
end
catch e
print(e)
MB_sol = MB_cont
end
lines!(ax_moving_boundary, q_range, MB_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_moving_boundary, q_range, MB_cont, linewidth=6, color=:black, linestyle=:dashdot, label=L"$ $Continuum limit")
axislegend(position=:rb)
xlims!(ax_moving_boundary, 0, 10)
ylims!(ax_moving_boundary, 15, 25)
fig
end

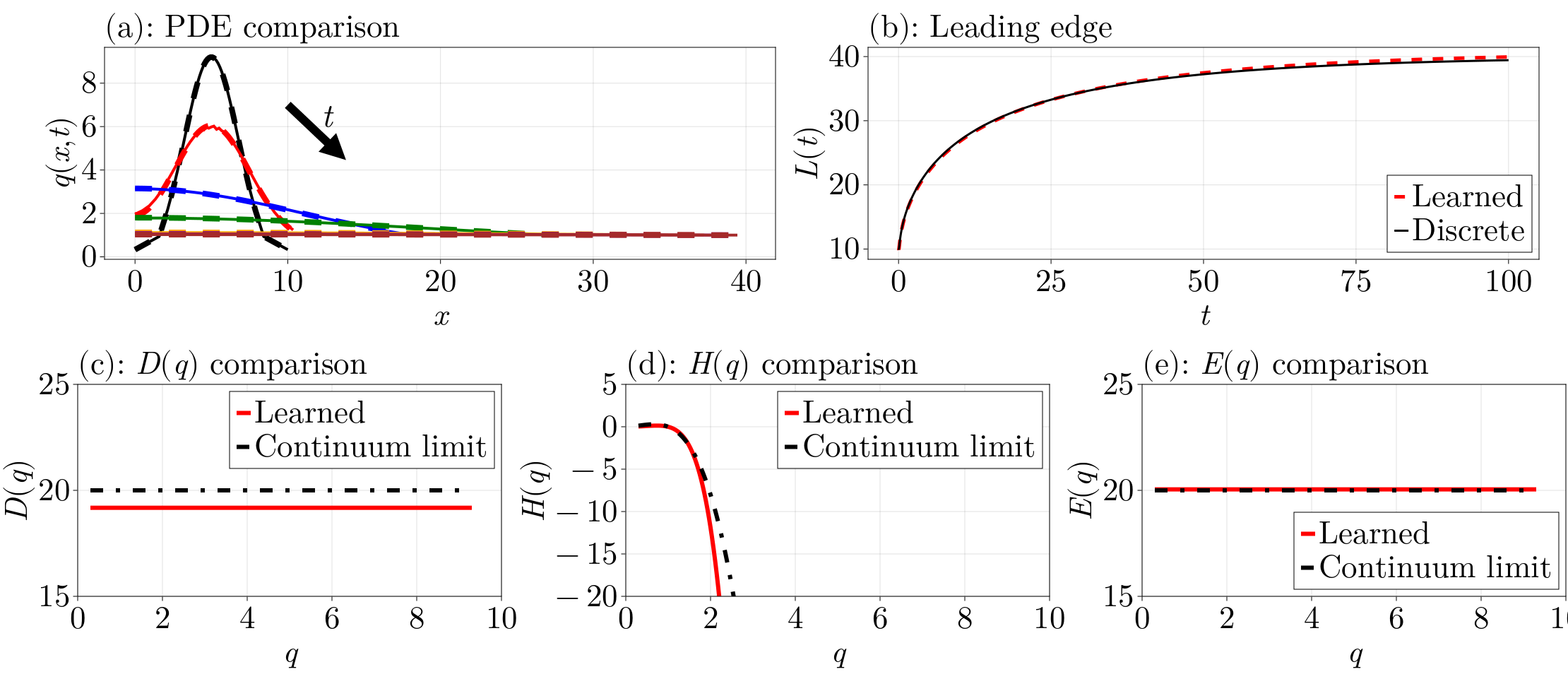

fig = plot_results(eql_sol, sol, k, s, η, diffusion_basis, rhs_basis, moving_boundary_basis)
fig
Just the code
An uncommented version of this example is given below. You can view the source code for this file here.
using StepwiseEQL
using CairoMakie
using EpithelialDynamics1D
using OrdinaryDiffEq
using LinearSolve
using Random
using DataInterpolations
using Optimization
using OptimizationNLopt
using PreallocationTools
using SpecialFunctions
using Setfield
function initial_density(x, p)
(; σ, L₀, N₀) = p
return N₀ * exp(-(2x - L₀)^2 / (8σ^2)) / (erf(L₀ * sqrt(2) / (4σ)) * sqrt(2π * σ^2))
end
function impose_symmetry!(ξ, x)
_ξ = get_tmp(ξ, x)
for i in eachindex(x)
_ξ[i] = x[i]
if i ≠ firstindex(x)
_ξ[lastindex(x)+i-1] = L₀ - x[end-i+1]
end
end
return _ξ
end
function objective_function(x, p)
ℓ = zero(eltype(x))
ξ = impose_symmetry!(p.ξ, x)
for i in eachindex(ξ)
qᵢ = initial_density(ξ[i], p)
q̂ᵢ = StepwiseEQL.cell_density(ξ, i)
ℓ += (qᵢ - q̂ᵢ)^2
end
return ℓ
end
σ, L₀, N₀ = sqrt(3.0), 10.0, 40
p = (σ=σ, L₀=L₀, N₀=N₀, ξ=DiffCache(zeros(N₀ + 1)))
lb = fill(0.0, 1 + N₀ ÷ 2)
lb[end] = L₀ / 2
ub = fill(L₀ / 2, 1 + N₀ ÷ 2)
ub[begin] = 0.0
x = collect(LinRange(0, L₀ / 2, 1 + N₀ ÷ 2))
optf = OptimizationFunction(objective_function, Optimization.AutoForwardDiff())
optp = OptimizationProblem(optf, x, p, lb=lb, ub=ub)
optsol = solve(optp, NLopt.LD_LBFGS())
initial_condition = impose_symmetry!(zeros(N₀ + 1), optsol.u)
final_time = 100.0
η = 1.0
s = 1.0
k = 20.0
Fp = (s=s, k=k)
F = (δ, p) -> k * (inv(δ) - p.s)
prob = CellProblem(;
final_time,
initial_condition,
damping_constant=η,
force_law=F,
force_law_parameters=Fp,
fix_right=false)
sol = solve(prob, Tsit5(), saveat=0.01)
pde_continuum = continuum_limit(prob, 2500)
pde_sol = solve(pde_continuum, TRBDF2(linsolve=KLUFactorization()), saveat=sol.t)
pde_ξ = pde_continuum.geometry.mesh_points
pde_L = pde_sol[end, :]
pde_q = pde_sol[begin:(end-1), :]
cell_q = node_densities.(sol.u)
cell_r = sol.u
cell_L = sol[end, :]
t = (0.0, 1 / 10, 2.0, 10.0, 50.0, 75.0, 100.0)
colors = (:black, :red, :blue, :green, :orange, :purple, :brown)
t_idx = [findlast(≤(τ), sol.t) for τ in t]
fig = Figure(fontsize=45)
ax1 = Axis(fig[1, 1], xlabel=L"x", ylabel=L"q(x,t)", width=950, height=300,
title=L"(a):$ $ PDE comparison", titlealign=:left,
xticks=(0:10:40, [L"%$s" for s in 0:10:40]), yticks=(0:2:10, [L"%$s" for s in 0:2:10]))
for (j, i) in enumerate(t_idx)
lines!(ax1, pde_ξ * pde_L[i], pde_q[:, i], color=colors[j], linestyle=:dash, linewidth=8)
lines!(ax1, cell_r[i], cell_q[i], color=colors[j], linewidth=4, label=L"%$(t[j])")
end
arrows!(ax1, [10.0], [7.0], [3.0], [-2.0], color=:black, linewidth=12, arrowsize=50)
text!(ax1, [12.2], [5.7], text=L"t", color=:black, fontsize=47)
ax2 = Axis(fig[1, 2], xlabel=L"t", ylabel=L"L(t)", width=950, height=300,
title=L"(b):$ $ Leading edge comparison", titlealign=:left,
xticks=(0:25:100, [L"%$s" for s in 0:25:100]), yticks=(0:10:40, [L"%$s" for s in 0:10:40]))
lines!(ax2, sol.t, cell_L, color=:black, linewidth=8, label=L"$ $Discrete")
lines!(ax2, pde_sol.t, pde_L, color=:red, linestyle=:dash, linewidth=8, label=L"$ $Learned")
axislegend(position=:rb)
resize_to_layout!(fig)
fig
diffusion_basis = PolynomialBasis(-2, 2)
rhs_basis = PolynomialBasis(1, 5)
moving_boundary_basis = PolynomialBasis(-2, 2)
eql_sol = stepwise_selection(sol;
diffusion_basis, rhs_basis, moving_boundary_basis,
mesh_points=100, initial=:none,
threshold_tol=(q=0.3, dL=0.2))
function plot_results(eql_sol, sol, k, s, η, diffusion_basis, rhs_basis, moving_boundary_basis, conserve_mass=false)
t = (0.0, 1 / 10, 2.0, 10.0, 50.0, 75.0, 100.0)
prob = sol.prob.p
prob = @set prob.final_time = 100.0
sol = solve(prob, Tsit5(), saveat=[collect(t); LinRange(0, 100, 2500)] |> sort |> unique)
time_indices = [findlast(≤(τ), sol.t) for τ in t]
colors = (:black, :red, :blue, :green, :orange, :purple, :brown)
pde = eql_sol.pde
pde = @set pde.final_time = 100.0 # need to resolve so that we plot over the complete time interval
pde_sol = solve(pde, TRBDF2(linsolve=KLUFactorization()), saveat=sol.t)
pde_continuum = deepcopy(pde)
pde_continuum.diffusion_parameters.θ .= [0, 0.0, k / η, 0.0, 0]
pde_continuum.boundary_conditions.rhs.p.θ .= [0, 2.0, -2.0, 0, 0]
pde_continuum.boundary_conditions.moving_boundary.p.θ .= [0, 0, k / η, 0, 0]
pde_ξ = pde_continuum.geometry.mesh_points
pde_L = pde_sol[end, :]
pde_q = pde_sol[begin:(end-1), :]
cell_q = node_densities.(sol.u)
cell_r = sol.u
cell_L = sol[end, :]
q_range = LinRange(0.3, 9.3, 250)
fig = Figure(fontsize=45, resolution=(2220, 961))
top_grid = fig[1, 1] = GridLayout(1, 2)
bottom_grid = fig[2, 1] = GridLayout(1, 3)
ax_pde = Axis(top_grid[1, 1], xlabel=L"x", ylabel=L"q(x,t)", width=950, height=300,
title=L"(a):$ $ PDE comparison", titlealign=:left,
xticks=(0:10:40, [L"%$s" for s in 0:10:40]), yticks=(0:2:10, [L"%$s" for s in 0:2:10]))
for (j, i) in enumerate(time_indices)
lines!(ax_pde, pde_ξ * pde_L[i], pde_q[:, i], color=colors[j], linestyle=:dash, linewidth=8)
lines!(ax_pde, cell_r[i], cell_q[i], color=colors[j], linewidth=4, label=L"%$(t[j])")
end
arrows!(ax_pde, [10.0], [7.0], [3.0], [-2.0], color=:black, linewidth=12, arrowsize=50)
text!(ax_pde, [12.2], [5.7], text=L"t", color=:black, fontsize=47)
ax_leading_edge = Axis(top_grid[1, 2], xlabel=L"t", ylabel=L"L(t)", width=950, height=300,
title=L"(b):$ $ Leading edge comparison", titlealign=:left,
xticks=(0:25:100, [L"%$s" for s in 0:25:100]), yticks=(0:10:40, [L"%$s" for s in 0:10:40]))
lines!(ax_leading_edge, pde_sol.t, pde_L, color=:red, linestyle=:dash, linewidth=5, label=L"$ $Learned")
lines!(ax_leading_edge, sol.t, cell_L, color=:black, linewidth=3, label=L"$ $Discrete")
axislegend(position=:rb)
ax_diffusion = Axis(bottom_grid[1, 1],
xlabel=L"q", ylabel=L"D(q)", width=600, height=300,
title=L"(c): $D(q)$ comparison", titlealign=:left,
xticks=(0:2:10, [L"%$s" for s in 0:2:10]), yticks=(0:5:25, [L"%$s" for s in 0:5:25]))
D_cont_fnc = q -> k / η
D_cont = D_cont_fnc.(q_range)
local D_sol
try
D_sol = diffusion_basis.(q_range, Ref(eql_sol.diffusion_theta), Ref(nothing))
catch e
print(e)
D_sol = D_cont
end
lines!(ax_diffusion, q_range, D_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_diffusion, q_range, D_cont, linewidth=6, color=:black, linestyle=:dashdot, label=L"$ $Continuum limit")
axislegend(position=:rt)
xlims!(ax_diffusion, 0, 10)
ylims!(ax_diffusion, 15, 25)
ax_rhs = Axis(bottom_grid[1, 2],
xlabel=L"q", ylabel=L"H(q)", width=600, height=300,
title=L"(d): $H(q)$ comparison", titlealign=:left,
xticks=(0:2:10, [L"%$s" for s in 0:2:10]), yticks=(-20:5:5, [L"%$s" for s in -20:5:5]))
RHS_cont_fnc = q -> 2q^2 * (1 - s * q)
RHS_cont = RHS_cont_fnc.(q_range)
local RHS_sol
try
RHS_sol = rhs_basis.(q_range, Ref(eql_sol.rhs_theta), Ref(nothing))
catch e
print(e)
RHS_sol = RHS_cont
end
lines!(ax_rhs, q_range, RHS_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_rhs, q_range, RHS_cont, linewidth=6, color=:black, linestyle=:dashdot, label=L"$ $Continuum limit")
axislegend(position=:rt)
xlims!(ax_rhs, 0, 10)
ylims!(ax_rhs, -20, 5)
ax_moving_boundary = Axis(bottom_grid[1, 3],
xlabel=L"q", ylabel=L"E(q)", width=600, height=300,
title=L"(e): $E(q)$ comparison", titlealign=:left,
xticks=(0:2:10, [L"%$s" for s in 0:2:10]), yticks=(0:5:25, [L"%$s" for s in 0:5:25]))
MB_cont_fnc = q -> k / η
MB_cont = MB_cont_fnc.(q_range)
local MB_sol
try
if !conserve_mass
MB_sol = moving_boundary_basis.(q_range, Ref(eql_sol.moving_boundary_theta), Ref(nothing))
else
MB_sol = moving_boundary_basis.(q_range, Ref(eql_sol.diffusion_theta), Ref(nothing))
end
catch e
print(e)
MB_sol = MB_cont
end
lines!(ax_moving_boundary, q_range, MB_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax_moving_boundary, q_range, MB_cont, linewidth=6, color=:black, linestyle=:dashdot, label=L"$ $Continuum limit")
axislegend(position=:rb)
xlims!(ax_moving_boundary, 0, 10)
ylims!(ax_moving_boundary, 15, 25)
fig
end
fig = plot_results(eql_sol, sol, k, s, η, diffusion_basis, rhs_basis, moving_boundary_basis)
figThis page was generated using Literate.jl.
