Discrete Densities at the Boundaries

In this section, we show how we obtained the figures in the paper that motivate the need for our new definition of density at the boundary. We recall that we defined

\[\begin{align*} q_1(t) &= \frac{2}{x_2(t) - x_1(t)} - \frac{2}{x_3(t) - x_1(t)}, \\ q_n(t) &= \frac{2}{x_n(t) - x_{n-1}(t)} - \frac{2}{x_n(t) - x_{n-2}(t)}, \end{align*}\]

modifying the previous definitions $q_1(t) = 1/x_2(t)$ and $q_n(t) = 1/(x_n(t) - x_{n-1}(t))$.

To start, let us load in the packages we will need.

using StepwiseEQL
using CairoMakie
using EpithelialDynamics1D
using OrdinaryDiffEq
using LinearSolve

We now define and solve the CellProblem, and its corresponding continuum limit.

force_law = (δ, p) -> p.k * (p.s - δ)
k, s, η, T = 50.0, 0.2, 1.0, 10.0
force_law_parameters = (k=k, s=s)
initial_condition = collect(LinRange(0, 5, 30))
prob = CellProblem(;
    force_law,
    force_law_parameters,
    final_time=T,
    damping_constant=η,
    initial_condition,
    fix_right=false)
sol = solve(prob, Tsit5(), saveat=0.02)
pde_prob = continuum_limit(prob, 5000, proliferation=false)
pde_sol = solve(pde_prob, TRBDF2(linsolve=KLUFactorization()), saveat=sol.t)

retcode: Success
Interpolation: 1st order linear
t: 501-element Vector{Float64}:
  0.0
  0.02
  0.04
  0.06
  0.08
  ⋮
  9.94
  9.96
  9.98
 10.0
u: 501-element Vector{Vector{Float64}}:
 [5.8, 5.8, 5.8, 5.8, 5.8, 5.8, 5.799999999999999, 5.800000000000001, 5.8, 5.800000000000001  …  5.799999999999996, 5.799999999999996, 5.799999999999996, 5.799999999999996, 5.799999999999996, 5.799999999999996, 5.799999999999996, 5.799999999999996, 5.799999999999996, 5.0]
 [5.799999999999999, 5.799999999999999, 5.800000000000001, 5.800000000000001, 5.799999999999999, 5.8, 5.8, 5.800000000000001, 5.799999999999999, 5.799999999999999  …  5.1924095336557405, 5.190495704337308, 5.188581949234203, 5.186668313326301, 5.184756020440565, 5.182847493803263, 5.1809447979123915, 5.17904652757611, 5.177146783848216, 5.020959142248633]
 [5.799999999999999, 5.8, 5.799999999999999, 5.799999999999999, 5.8, 5.8, 5.8, 5.800000000000001, 5.8, 5.799999999999999  …  5.143442394138647, 5.142046298632507, 5.140650182859538, 5.139254077827552, 5.137858288677557, 5.136463403388777, 5.1350699293367486, 5.133677552337702, 5.132284878470131, 5.032916286859433]
 [5.799999999999995, 5.799999999999995, 5.799999999999995, 5.7999999999999945, 5.799999999999995, 5.799999999999995, 5.799999999999995, 5.799999999999995, 5.799999999999995, 5.7999999999999945  …  5.118227792139378, 5.117079988404248, 5.115932332278834, 5.114784836161163, 5.113637590358396, 5.112490765195386, 5.111344507534536, 5.110198730756248, 5.109053042509071, 5.042421082805959]
 [5.79999999999663, 5.799999999996631, 5.799999999996631, 5.79999999999663, 5.79999999999663, 5.799999999996629, 5.799999999996628, 5.799999999996627, 5.799999999996626, 5.7999999999966265  …  5.103163998482414, 5.102163055749991, 5.1011623632269725, 5.10016193038084, 5.099161837944899, 5.098162240724732, 5.097163272645574, 5.0961648508727775, 5.095166605712397, 5.050446188390052]
 ⋮
 [5.2225071190676555, 5.222507107636834, 5.22250707334437, 5.22250701619027, 5.222506936174542, 5.222506833297196, 5.222506707558247, 5.222506558957714, 5.222506387495615, 5.222506193171979  …  5.006205275518905, 5.00614107114595, 5.006076868698485, 5.006012668182211, 5.0059484696028385, 5.005884272966066, 5.005820078277598, 5.005755885543136, 5.005691694768377, 5.639095864107762]
 [5.22184873206438, 5.221848720669727, 5.2218486864857665, 5.221848629512506, 5.221848549749951, 5.221848447198115, 5.221848321857011, 5.221848173726659, 5.221848002807076, 5.221847809098291  …  5.006188207936062, 5.006124180483525, 5.006060154940927, 5.0059961313139505, 5.005932109608278, 5.005868089829588, 5.005804071983562, 5.005740056075877, 5.00567604211221, 5.639550474565784]
 [5.221192591559284, 5.221192580200655, 5.22119254612477, 5.221192489331633, 5.2211924098212545, 5.221192307593643, 5.2211921826488155, 5.221192034986788, 5.22119186460758, 5.221191671511219  …  5.0061711520945495, 5.006107300909339, 5.006043451618299, 5.005979604227087, 5.005915758741366, 5.005851915166788, 5.005788073509013, 5.005724233773695, 5.005660395966485, 5.64000372631041]
 [5.2205386932976285, 5.220538681974883, 5.220538648006646, 5.220538591392923, 5.220538512133723, 5.220538410229056, 5.220538285678937, 5.220538138483384, 5.220537968642416, 5.22053777615606  …  5.006154106765068, 5.006090431192137, 5.0060267574973825, 5.005963085686441, 5.005899415764949, 5.005835747738538, 5.00577208161284, 5.005708417393488, 5.005644755086109, 5.640455621425953]

Next, we need to get the data for the densities at $t=2$, as well as the derivatives. The densities are obtained below.

t_idx = findlast(≤(2), sol.t)
new_densities = node_densities(sol.u[t_idx])
baker_densities = copy(new_densities)
baker_densities[begin] = 1 / (sol.u[t_idx][2] - sol.u[t_idx][1])
baker_densities[end] = 1 / (sol.u[t_idx][end] - sol.u[t_idx][end-1])

5.041919353189308

To now set up the derivatives, we need the $(x, t)$ data.

pde_L = pde_sol.u[t_idx][end]
pde_q = pde_sol.u[t_idx][begin:(end-1)]
pde_x = pde_prob.geometry.mesh_points * pde_L

5000-element Vector{Float64}:
 0.0
 0.0010598254070783829
 0.0021196508141567657
 0.0031794762212351488
 0.004239301628313531
 ⋮
 5.294887733763601
 5.2959475591706795
 5.297007384577758
 5.298067209984836

Next, we compute all the data.

new_dx = zeros(length(sol))
baker_dx = zeros(length(sol))
continuum_dx = zeros(length(sol))
for j in eachindex(sol)
    new_dx[j] = StepwiseEQL.cell_∂q∂x(sol, length(sol.u[j]), j)
    qₙ₋₂ = StepwiseEQL.cell_density(sol, length(sol.u[j]) - 2, j)
    qₙ₋₁ = StepwiseEQL.cell_density(sol, length(sol.u[j]) - 1, j)
    qₙ = 1 / (sol.u[j][end] - sol.u[j][end-1])
    xₙ₋₂ = sol.u[j][end-2]
    xₙ₋₁ = sol.u[j][end-1]
    xₙ = sol.u[j][end]
    baker_dx[j] = StepwiseEQL.backward_dfdx(qₙ₋₂, qₙ₋₁, qₙ, xₙ₋₂, xₙ₋₁, xₙ)
    baker_dx[j] = (qₙ - qₙ₋₁) / (xₙ - xₙ₋₁)
    u = pde_sol.u[j][end-1]
    continuum_dx[j] = 2u^2 * (1 - u * s)
end

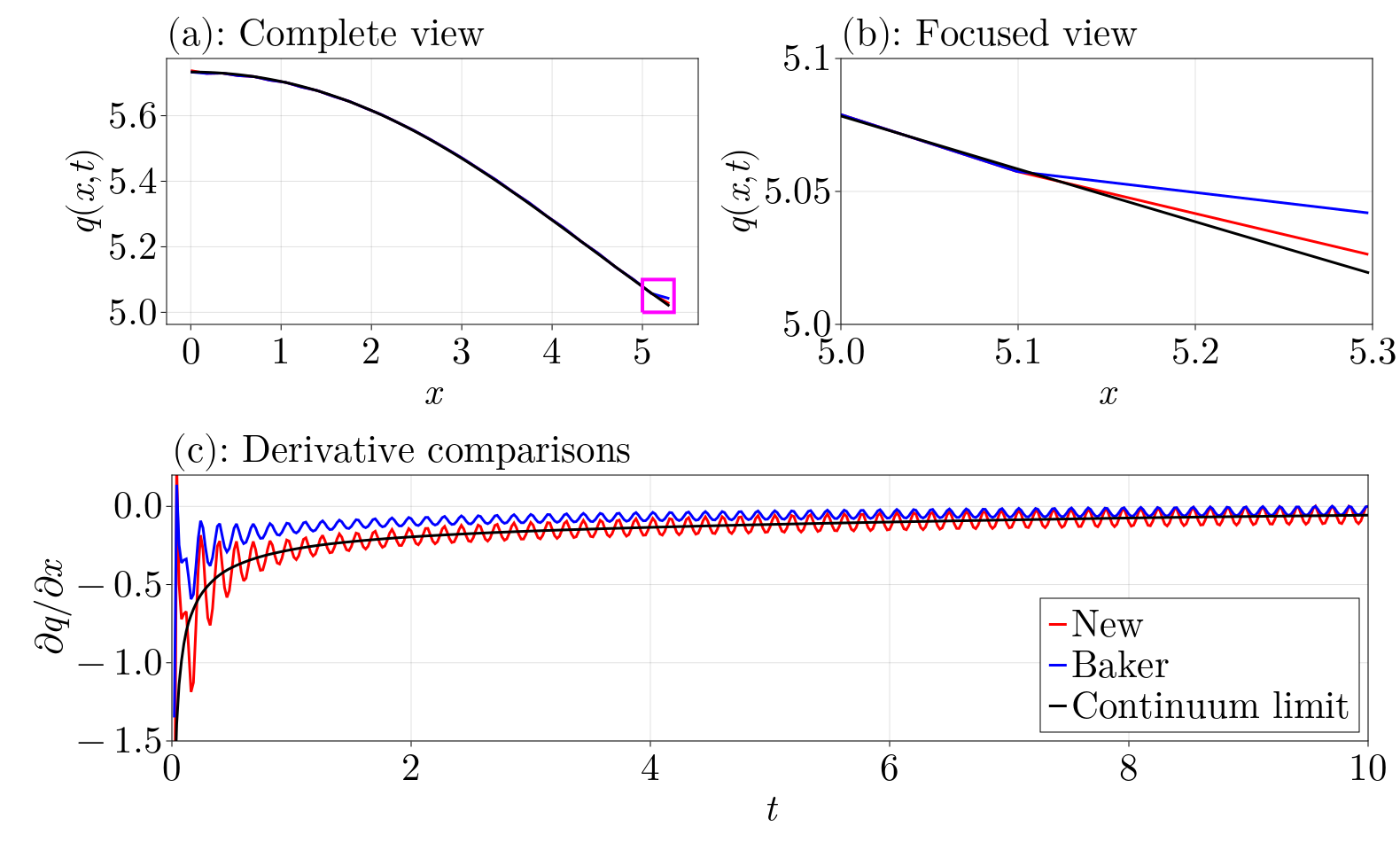

Finally, we can plot the comparisons.

fig = Figure(fontsize=43, resolution=(1580, 950))
ax = Axis(fig[1, 1], xlabel=L"x", ylabel=L"q(x,t)",
    width=600, height=300,
    xticks=(0:6, [L"%$s" for s in 0:6]),
    yticks=(5:0.2:5.8, [L"%$s" for s in 5:0.2:5.8]),
    title=L"(a):$ $ Complete view",
    titlealign=:left)
lines!(ax, sol.u[t_idx], new_densities, linewidth=3, color=:red, label=L"$ $New")
lines!(ax, sol.u[t_idx], baker_densities, linewidth=3, color=:blue, label=L"$ $Baker")
lines!(ax, pde_x, pde_q, linewidth=3, color=:black, label=L"$ $Continuum limit")
lines!(ax, [(5.0, 5.0), (5.35, 5.0), (5.35, 5.1), (5.0, 5.1), (5.0, 5.0)], color = :magenta, linewidth=4)
ax = Axis(fig[1, 2], xlabel=L"x", ylabel=L"q(x,t)",
    width=600, height=300,
    title=L"(b):$ $ Focused view",
    xticks=(5:0.1:5.3, [L"%$s" for s in 5:0.1:5.3]),
    yticks=(5:0.05:5.1, [L"%$s" for s in 5:0.05:5.1]),
    titlealign=:left)
lines!(ax, sol.u[t_idx], new_densities, linewidth=3, color=:red, label=L"$ $New")
lines!(ax, sol.u[t_idx], baker_densities, linewidth=3, color=:blue, label=L"$ $Baker")
lines!(ax, pde_x, pde_q, linewidth=3, color=:black, label=L"$ $Continuum limit")
xlims!(ax, 5, 5.3)
ylims!(ax, 5, 5.1)
ax = Axis(fig[2, 1:2],
    xlabel=L"t", ylabel=L"\partial q/\partial x",
    title=L"(c):$ $ Derivative comparisons",
    titlealign=:left,
    xticks=(0:2:10, [L"%$s" for s in 0:2:10]),
    yticks=(-1.5:0.5:0, [L"%$s" for s in -1.5:0.5:0]),
    width=1350,
    height=300)
lines!(ax, sol.t[2:end], new_dx[2:end], linewidth=3, color=:red, label=L"$ $New")
lines!(ax, sol.t[2:end], baker_dx[2:end], linewidth=3, color=:blue, label=L"$ $Baker")
lines!(ax, sol.t[2:end], continuum_dx[2:end], linewidth=3, color=:black, label=L"$ $Continuum limit")
xlims!(ax, 0, 10)
ylims!(ax, -1.5, 0.2)
axislegend(ax, position=:rb)
fig

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using StepwiseEQL
using CairoMakie
using EpithelialDynamics1D
using OrdinaryDiffEq
using LinearSolve

force_law = (δ, p) -> p.k * (p.s - δ)
k, s, η, T = 50.0, 0.2, 1.0, 10.0
force_law_parameters = (k=k, s=s)
initial_condition = collect(LinRange(0, 5, 30))
prob = CellProblem(;
    force_law,
    force_law_parameters,
    final_time=T,
    damping_constant=η,
    initial_condition,
    fix_right=false)
sol = solve(prob, Tsit5(), saveat=0.02)
pde_prob = continuum_limit(prob, 5000, proliferation=false)
pde_sol = solve(pde_prob, TRBDF2(linsolve=KLUFactorization()), saveat=sol.t)

t_idx = findlast(≤(2), sol.t)
new_densities = node_densities(sol.u[t_idx])
baker_densities = copy(new_densities)
baker_densities[begin] = 1 / (sol.u[t_idx][2] - sol.u[t_idx][1])
baker_densities[end] = 1 / (sol.u[t_idx][end] - sol.u[t_idx][end-1])

pde_L = pde_sol.u[t_idx][end]
pde_q = pde_sol.u[t_idx][begin:(end-1)]
pde_x = pde_prob.geometry.mesh_points * pde_L

new_dx = zeros(length(sol))
baker_dx = zeros(length(sol))
continuum_dx = zeros(length(sol))
for j in eachindex(sol)
    new_dx[j] = StepwiseEQL.cell_∂q∂x(sol, length(sol.u[j]), j)
    qₙ₋₂ = StepwiseEQL.cell_density(sol, length(sol.u[j]) - 2, j)
    qₙ₋₁ = StepwiseEQL.cell_density(sol, length(sol.u[j]) - 1, j)
    qₙ = 1 / (sol.u[j][end] - sol.u[j][end-1])
    xₙ₋₂ = sol.u[j][end-2]
    xₙ₋₁ = sol.u[j][end-1]
    xₙ = sol.u[j][end]
    baker_dx[j] = StepwiseEQL.backward_dfdx(qₙ₋₂, qₙ₋₁, qₙ, xₙ₋₂, xₙ₋₁, xₙ)
    baker_dx[j] = (qₙ - qₙ₋₁) / (xₙ - xₙ₋₁)
    u = pde_sol.u[j][end-1]
    continuum_dx[j] = 2u^2 * (1 - u * s)
end

fig = Figure(fontsize=43, resolution=(1580, 950))
ax = Axis(fig[1, 1], xlabel=L"x", ylabel=L"q(x,t)",
    width=600, height=300,
    xticks=(0:6, [L"%$s" for s in 0:6]),
    yticks=(5:0.2:5.8, [L"%$s" for s in 5:0.2:5.8]),
    title=L"(a):$ $ Complete view",
    titlealign=:left)
lines!(ax, sol.u[t_idx], new_densities, linewidth=3, color=:red, label=L"$ $New")
lines!(ax, sol.u[t_idx], baker_densities, linewidth=3, color=:blue, label=L"$ $Baker")
lines!(ax, pde_x, pde_q, linewidth=3, color=:black, label=L"$ $Continuum limit")
lines!(ax, [(5.0, 5.0), (5.35, 5.0), (5.35, 5.1), (5.0, 5.1), (5.0, 5.0)], color = :magenta, linewidth=4)
ax = Axis(fig[1, 2], xlabel=L"x", ylabel=L"q(x,t)",
    width=600, height=300,
    title=L"(b):$ $ Focused view",
    xticks=(5:0.1:5.3, [L"%$s" for s in 5:0.1:5.3]),
    yticks=(5:0.05:5.1, [L"%$s" for s in 5:0.05:5.1]),
    titlealign=:left)
lines!(ax, sol.u[t_idx], new_densities, linewidth=3, color=:red, label=L"$ $New")
lines!(ax, sol.u[t_idx], baker_densities, linewidth=3, color=:blue, label=L"$ $Baker")
lines!(ax, pde_x, pde_q, linewidth=3, color=:black, label=L"$ $Continuum limit")
xlims!(ax, 5, 5.3)
ylims!(ax, 5, 5.1)
ax = Axis(fig[2, 1:2],
    xlabel=L"t", ylabel=L"\partial q/\partial x",
    title=L"(c):$ $ Derivative comparisons",
    titlealign=:left,
    xticks=(0:2:10, [L"%$s" for s in 0:2:10]),
    yticks=(-1.5:0.5:0, [L"%$s" for s in -1.5:0.5:0]),
    width=1350,
    height=300)
lines!(ax, sol.t[2:end], new_dx[2:end], linewidth=3, color=:red, label=L"$ $New")
lines!(ax, sol.t[2:end], baker_dx[2:end], linewidth=3, color=:blue, label=L"$ $Baker")
lines!(ax, sol.t[2:end], continuum_dx[2:end], linewidth=3, color=:black, label=L"$ $Continuum limit")
xlims!(ax, 0, 10)
ylims!(ax, -1.5, 0.2)
axislegend(ax, position=:rb)
fig
