A Piecewise Proliferation Law
In this section, we show how we reproduced the results from Section 3.3 of Murphy et al. (2020), and how we learned the appropriate continuum model describing these results. In this section, the force law $F(\ell_i) = k(s - \ell_i)$ is used, and the proliferation law is given by
\[G(\ell_i) = \begin{cases} 0 & 0 \leq \ell_i < \ell_p, \\ \beta & \ell_i \geq \ell_p, \end{cases}\]
where $\ell_p = 0.2$ and $\beta=0.01$. Murphy et al. start with $41$ nodes initially, spaced such that $\ell_i = 0.25$ for each $i$. To start, let us setup the CellProblem, first loading in the packages we will need.
using StepwiseEQL
using CairoMakie
using EpithelialDynamics1D
using OrdinaryDiffEq
using LinearSolve
using Random
using DataInterpolationsThe CellProblem is defined as follows.
final_time = 500.0
domain_length = 10.0
initial_condition = collect(0:0.25:domain_length)
η = 1.0
s = 0.0
k = 0.0001
Δt = 1e-2
ℓp = 0.2
β = 0.01
Fp = (s=s, k=k)
F = (δ, p) -> p.k * (p.s - δ)
Gp = (ℓp=ℓp, β=β)
G = (δ, p) -> δ ≥ p.ℓp ? p.β : 0.0
prob = CellProblem(;
final_time,
initial_condition,
damping_constant=η,
force_law=F,
force_law_parameters=Fp,
proliferation_law=G,
proliferation_period=Δt,
proliferation_law_parameters=Gp,
fix_right=true)
Random.seed!(123)
ens_prob = EnsembleProblem(prob)
saveat = 0.1
esol = solve(ens_prob, Tsit5(), EnsembleSerial(); trajectories=1000, saveat=saveat);Now let us compare the discrete results to the continuum limit model's solution.
density_results = node_densities_means_only(esol, num_knots=100)
number_results = cell_numbers(esol)
pde = continuum_limit(prob, 1000, proliferation=true)
pde_sol = solve(pde, TRBDF2(linsolve=KLUFactorization()), saveat=esol[1].t)
pde_number_results = [integrate_pde(pde_sol, i) for i in eachindex(pde_sol)]
t = (0.0, 10.0, 50.0, 100.0, 250.0, 500.0)
colors = (:black, :red, :blue, :green, :orange, :purple)
t_idx = [findlast(≤(τ), esol[1].t) for τ in t]

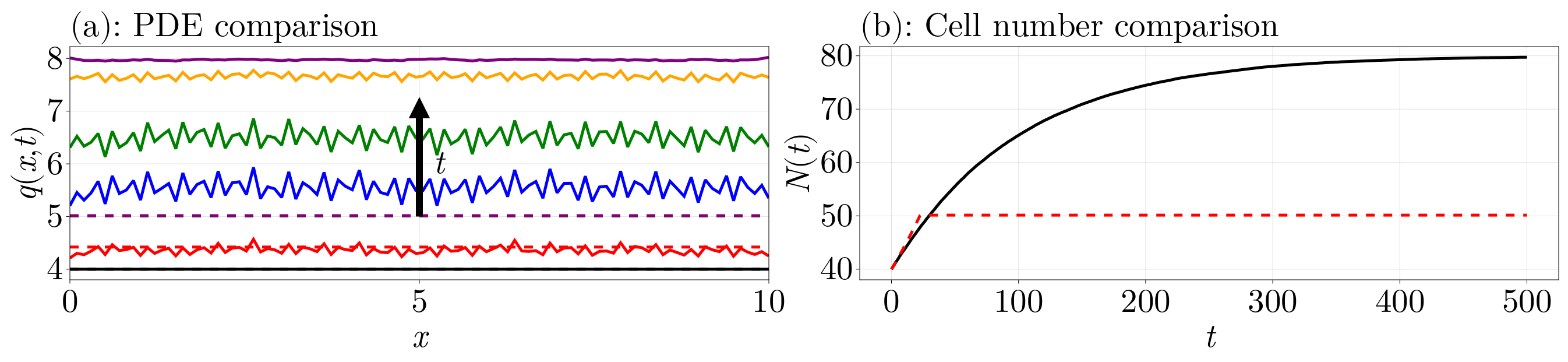

fig = Figure(fontsize=57)
ax1 = Axis(fig[1, 1], xlabel=L"x", ylabel=L"q(x, t)",
title=L"(a):$ $ PDE comparison", titlealign=:left,
width=1200, height=400,
xticks=(0:5:10, [L"%$s" for s in 0:5:10]),
yticks=(4:8, [L"%$s" for s in 4:8]))
ax2 = Axis(fig[1, 2], xlabel=L"t", ylabel=L"N(t)",
title=L"(b):$ $ Cell number comparison", titlealign=:left,
width=1200, height=400,
xticks=(0:100:500, [L"%$s" for s in 0:100:500]),
yticks=(40:10:80, [L"%$s" for s in 40:10:80]))
for (j, i) in enumerate(t_idx)
lines!(ax1, density_results.knots[i], density_results.means[i], color=colors[j], linewidth=5)
lines!(ax1, pde.geometry.mesh_points, pde_sol.u[i], color=colors[j], linewidth=5, linestyle=:dash)
end
xlims!(ax1, 0, 10)
arrows!(ax1, [5.0], [5.0], [0.0], [2.0], color=:black, linewidth=12, arrowsize=50)
text!(ax1, [5.2], [5.7], text=L"t", color=:black, fontsize=57)
lines!(ax2, esol[1].t, number_results.means, color=:black, linewidth=5)
lines!(ax2, esol[1].t, pde_number_results, color=:red, linewidth=5, linestyle=:dash)
resize_to_layout!(fig)
fig
Obviously, the continuum limit is not working in this case. We are interested in learning a continuum model for this problem. To know what basis to use for $D(q)$ and $R(q)$, we know that in cases where the continuum limit is accurate we would expect
\[\begin{align*} D(q) &= \alpha/q^2, \\ R(q) &= \begin{cases} 0 & q > 1/\ell_p, \\ \beta q & q \leq 1/\ell_p, \end{cases} \end{align*}\]
where $\alpha=k/\eta$. We can write this $R(q)$ as
\[R(q) = \beta q\mathbb I\left(q \leq \frac{1}{\ell_p}\right),\]
where $\mathbb I(A)$ is the indicator function for the set $A$. We could use this representation as an inspiration for the basis functions to use, for example we could consider
\[R(q) = \left[\theta_1^rq + \theta_2^rq^2 + \theta_3^rq^3\right]\mathbb I\left(q \leq \frac{1}{\ell_p}\right).\]
We instead find that this does not lead to any improved model. Instead, we find that working with a polynomial model is appropriate, where we write
\[R(q) = \theta_0^r + \theta_1^rq + \theta_2^rq^2 + \theta_3^rq^3 + \theta_4^rq^4 + \theta_5^rq^5.\]
For $D(q)$, this mechanism does not appear to be relevant in this example, with all results visually indistinguishable regardless of whether $D(q) = 0$ or $D(q) = \alpha/q^2$. Thus, we do not bother learning it in this case, simply fixing $D(q) = \alpha/q^2$; if we do not fix $D(q)$, we just learn $D(q) = 0$. We define the bases using PolynomialBasis:
diffusion_basis = PolynomialBasis(-2, -2)
reaction_basis = PolynomialBasis(0, 5)(::BasisSet{NTuple{6, StepwiseEQL.var"#52#54"{Int64}}}) (generic function with 3 methods)Let us now learn the equations.
eql_sol = stepwise_selection(esol; diffusion_basis, reaction_basis,
diffusion_theta=[k], initial=:none)StepwiseEQL Solution.
R(q) = θ₁ʳ ϕ₁ʳ(q) + θ₂ʳ ϕ₂ʳ(q)
┌──────┬─────────────────────────────────────┬───────┐
│ Step │ θ₁ʳ θ₂ʳ θ₃ʳ θ₄ʳ θ₅ʳ θ₆ʳ │ Loss │
├──────┼─────────────────────────────────────┼───────┤
│ 1 │ 0.00 0.00 0.00 0.00 0.00 0.00 │ -1.63 │
│ 2 │ 0.01 0.00 0.00 0.00 0.00 0.00 │ -2.33 │
│ 3 │ 0.08 -0.01 0.00 0.00 0.00 0.00 │ -6.24 │
└──────┴─────────────────────────────────────┴───────┘Now let us take these results and compare them with the discrete densities.
pde = eql_sol.pde
pde_sol = eql_sol.pde_sol
pde_number_results = [integrate_pde(pde_sol, i) for i in eachindex(pde_sol)]

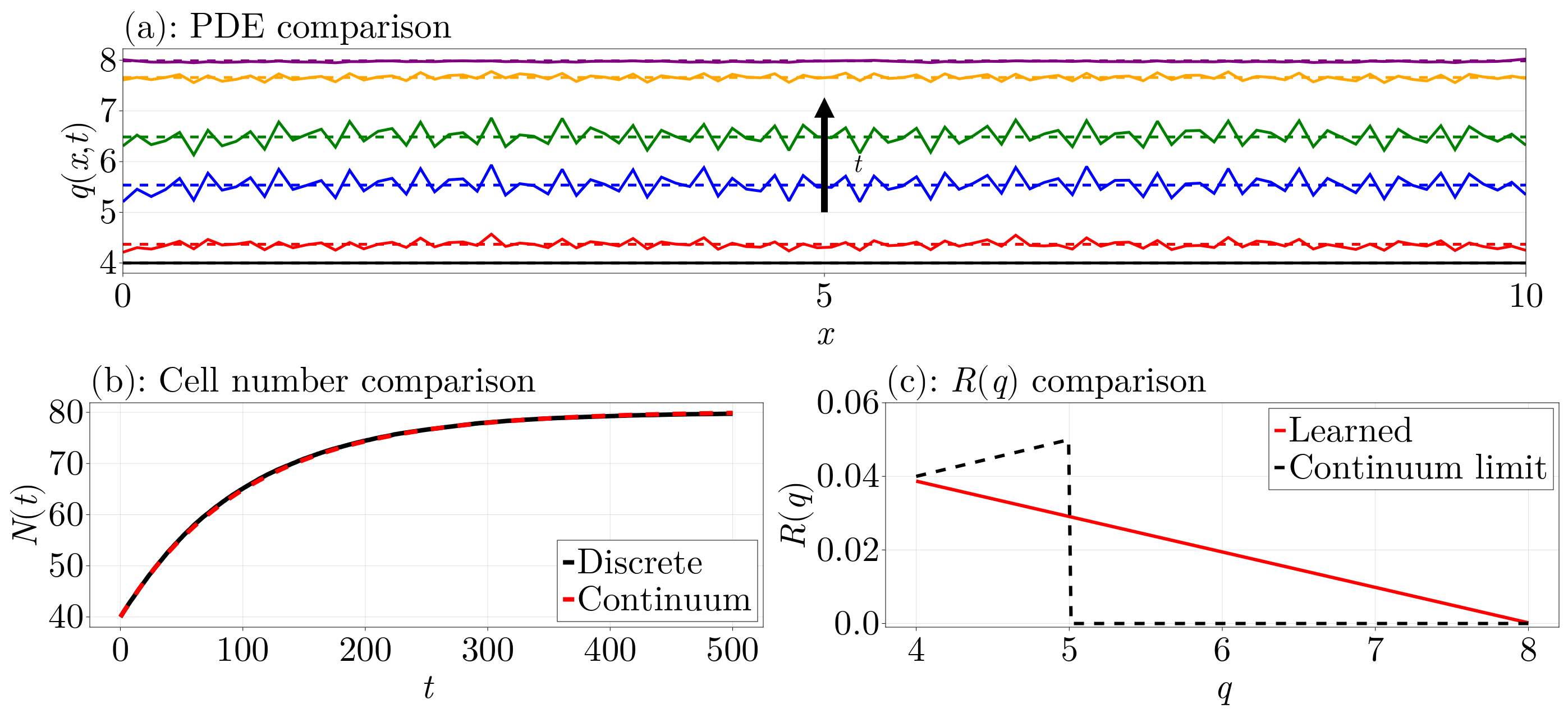

fig = Figure(fontsize=63)
ax1 = Axis(fig[1, 1:2], xlabel=L"x", ylabel=L"q(x, t)",
title=L"(a):$ $ PDE comparison", titlealign=:left,
width=2500, height=400,
xticks=(0:5:10, [L"%$s" for s in 0:5:10]),
yticks=(4:8, [L"%$s" for s in 4:8]))
ax2 = Axis(fig[2, 1], xlabel=L"t", ylabel=L"N(t)",
title=L"(b):$ $ Cell number comparison", titlealign=:left,
width=1200, height=400,
xticks=(0:100:500, [L"%$s" for s in 0:100:500]),
yticks=(40:10:80, [L"%$s" for s in 40:10:80]))
ax3 = Axis(fig[2, 2], xlabel=L"q", ylabel=L"R(q)",
title=L"(c): $R(q)$ comparison", titlealign=:left,
width=1200, height=400,
xticks=(4:8, [L"%$s" for s in 4:8]),
yticks=(0:0.02:0.06, [L"%$s" for s in 0:0.02:0.06]))
for (j, i) in enumerate(t_idx)
lines!(ax1, density_results.knots[i], density_results.means[i], color=colors[j], linewidth=5)
lines!(ax1, pde.geometry.mesh_points, pde_sol.u[i], color=colors[j], linewidth=5, linestyle=:dash)
end
xlims!(ax1, 0, 10)
arrows!(ax1, [5.0], [5.0], [0.0], [2.0], color=:black, linewidth=12, arrowsize=50)
text!(ax1, [5.2], [5.7], text=L"t", color=:black, fontsize=47)
lines!(ax2, esol[1].t, number_results.means, color=:black, linewidth=8, label=L"$ $Discrete")
lines!(ax2, esol[1].t, pde_number_results, color=:red, linewidth=8, linestyle=:dash, label=L"$ $Continuum")
axislegend(ax2, position=:rb)
R_cont = q -> q * G(1 / q, Gp)
q_range = LinRange(4, 8, 250)
R_sol = reaction_basis.(q_range, Ref(eql_sol.reaction_theta), Ref(nothing))
R_cont_sol = R_cont.(q_range)
lines!(ax3, q_range, R_sol, linewidth=6, color=:red, linestyle=:solid, label=L"$ $Learned")
lines!(ax3, q_range, R_cont_sol, linewidth=6, color=:black, linestyle=:dash, label=L"$ $Continuum limit")
axislegend(ax3, position=:rt)
ylims!(ax3, -0.001, 0.06)
resize_to_layout!(fig)
fig
As we can now see, the results have significantly improved and we have learned an accurate continuum model. Interestingly, the continuum form for $R(q)$ seems to now be a line that goes through the endpoints of the continuum form of $R(q)$, smoothing out the discontinuity, with $R(q) \approx \beta (K - q)$, where $K=8$; this form of $R(q)$ is also of note, since the carrying capacity density for this problem is $q=K=8$, and $\beta$ is the constant term in $G(\ell_i)$.
